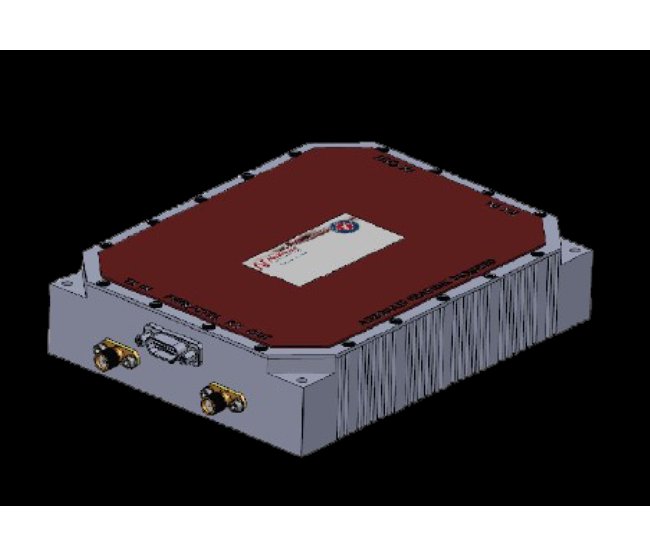

The NuPower Xtender™ ULSC-20-C01-S01 is a small, lightweight, and power-efficient 4-port full-duplex bidirectional amplifier ideal for extending the communication range of full-duplex wideband transceivers, such as the Kratos DS-346 KestrelTWM. The ULSC-20-C01-S01 amplifier generates 20 watts of RF power from 500 MHz to 6 GHz in transmit mode and the integrated low-noise amplifier provides 15 dB of gain. The efficiency and compact form factor of the NuPower Xtender™ ULSC-20-C01-S01 BDA makes it ideal for size, weight, and power-constrained RF telemetry and tactical communication systems. This solid-state BDA features a compact form factor, allowing the system integrator to easily incorporate the unit into the communications payload of unmanned aircraft systems (UAS) or other small to medium-sized platforms.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
38 dB
Specifications Input Drive
5 dBM
Specifications Input Supply
20 - 32
Specifications Maximum Frequency
6000 MHz
Specifications Minimum Frequency
500 MHz
Specifications Output Power Typ
20 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
6.0 x 4.25 x 1.5 Inch
Specifications Weight
2.5 oz
