Premium 0.82 W/cm² Ultra-Thin Flexible Heater

Premium 0.82 W/cm² Ultra-Thin Flexible Heater

ULT-166665

Efficient 0.82 W/cm² Ultra-Thin Flexible Heater for optimal heat distribution and safety compliance.

$49.99
$49.99
Sale

Initiate Order

Premium 0.82 W/cm² Ultra-Thin Flexible Heater

Premium 0.82 W/cm² Ultra-Thin Flexible Heater

$49.99

Quantity: 1

Claim Your Seller Account

Premium 0.82 W/cm² Ultra-Thin Flexible Heater

Premium 0.82 W/cm² Ultra-Thin Flexible Heater

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

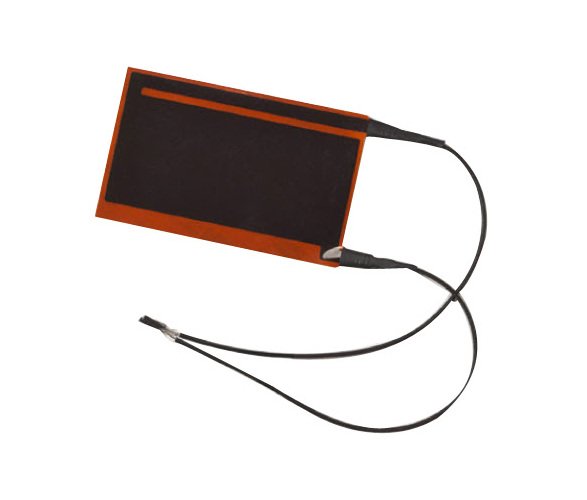

Experience superior heating efficiency with the Premium 0.82 W/cm² Ultra-Thin Flexible Heater by Pelonis Technologies. Designed with a Copper-Nickel Alloy, this rectangular heater offers precise heat distribution with a power of 8.4 Watts and a current of 2 Amps. With industry-leading standards like CE, CRUUS, Reach, and RoHS compliance, this heater ensures safety and reliability in various applications. The etched foil construction and 32mm x 32mm dimensions make it versatile and efficient for both consumer and institutional settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
2 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Etched Foil
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant
Specifications Lead Wire Length
210 mm
Specifications Length
32 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
8.4 Watts
Specifications Power Density
0.82 W/cm²
Specifications Reference Temperature Rise
150 ºC
Specifications Resistance
2.1 Ohm
Specifications Shape
Rectangular
Specifications Type
Copper-Nickel (Cu-Ni) Alloy
Specifications Width
32 mm
