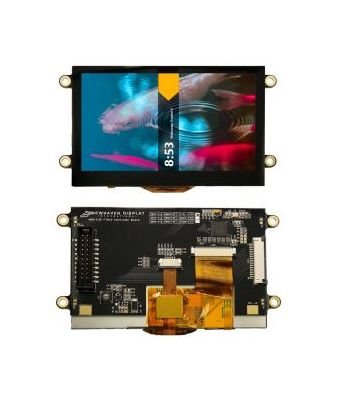

Premium 4.3-inch MVA Capacitive Graphic LCD Display Module
Premium 4.3-inch MVA Capacitive Graphic LCD Display Module
SKU:EVE-7aa564
Enhance visuals with our 4.3-inch MVA Capacitive LCD Module. Vibrant colors, responsive touch, eco-friendly design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Premium 4.3-inch MVA Capacitive Graphic LCD Display Module
$39.99
Quantity: 1
Claim Your Seller Account
Premium 4.3-inch MVA Capacitive Graphic LCD Display Module
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience stunning visual clarity with our Premium 4.3-inch Diagonal Size Multi-Domain Vertical Alignment (MVA) Capacitive Graphic LCD Display Module. Featuring a Transmissive display mode with vibrant Red, Green, Blue (RGB) colors and a resolution of 480 x 272 pixels, this module ensures high-quality graphics. With a 3.3V Voltage Supply and Capacitive Touch Panel, it offers intuitive interaction. Compliance with RoHS, REACH, and Lead (Pb) Free standards makes it eco-friendly and safe for use.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
67.2 mm
Dimension Outline Width
120.6 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT813
Specifications Country Of Origin
China
Specifications Diagonal Size
4.3 in | 109.22 mm
Specifications Display Format
480 x 272 Pixels | Wide Quarter Video Graphics Array (WQVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Premium Multi-Domain Vertical Alignment (MVA)
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Capacitive
Specifications View
Full
Specifications Voltage Supply
3.3 V
