Premium 4.625 Inch Chip Deflector with 16 Gauge Cold-Rolled Steel
Premium 4.625 Inch Chip Deflector with 16 Gauge Cold-Rolled Steel
SKU:STA-d1e196
Enhance machining efficiency with our premium 4.625-inch Chip Deflector crafted from 16 gauge cold-rolled steel.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Premium 4.625 Inch Chip Deflector with 16 Gauge Cold-Rolled Steel
$24.99
Quantity: 1
Claim Your Seller Account
Premium 4.625 Inch Chip Deflector with 16 Gauge Cold-Rolled Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your machining operations with our premium 4.625-inch Chip Deflector crafted from high-quality 16 gauge cold-rolled steel. Protect machine ways and way wipers effectively from metal chip damage. Ideal for hot chip applications and enhancing overall machining efficiency. Customizable to meet your size specifications with optional hole patterns. Easy to mount following precise instructions for a secure fit.
Product Specifications

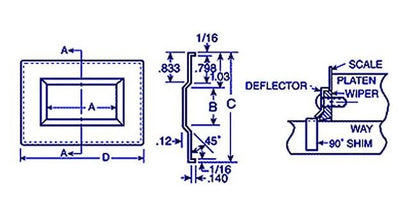

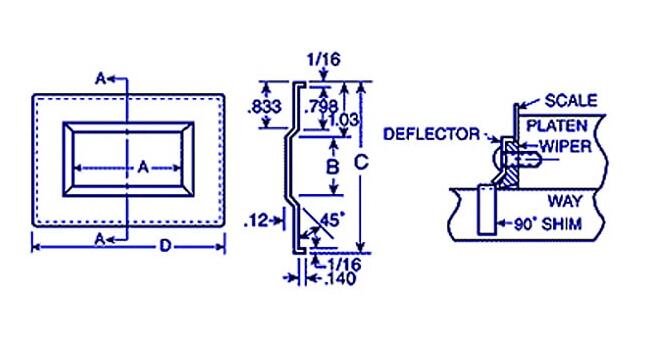

Mounting Instructions Mounting Instructions
Slide wiper into position.Place deflector over wiper.Insert all screws. Leave loose.Use 1/16 x 90º shim under lip of deflector.Use 6" scale. Apply pressure 90º leg of wiper. Hold deflector against 1/16 shim.Same procedure across top of wiper. Then around remaining sides. Remove shim.
Specifications Dimension A
4.625 in
Specifications Dimension B
1.625 in
Specifications Materials
Cold Rolled Steel (CRS)
Specifications Material Thickness
16 gauge
