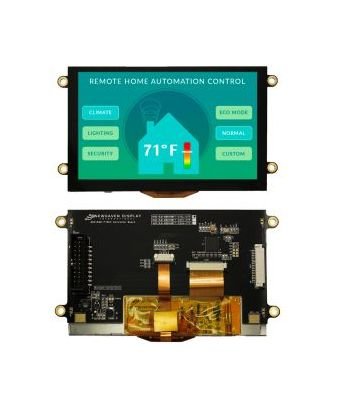

Premium 5-Inch MVA Resistive TFT LCD Module
Premium 5-Inch MVA Resistive TFT LCD Module
SKU:EVE-8b60ba
Experience vibrant RGB graphics with this 5-inch Premium MVA Resistive TFT LCD Module. Perfect for diverse applications with intuitive touch panel interaction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Premium 5-Inch MVA Resistive TFT LCD Module
$129.99
Quantity: 1
Claim Your Seller Account
Premium 5-Inch MVA Resistive TFT LCD Module
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EVE2 Thin Film Transistor (TFT) Module offers a premium 5-inch display with a 800 x 480 pixel resolution in Wide Video Graphics Array (WVGA) format. Featuring a Premium Multi-Domain Vertical Alignment (MVA) panel with a transmissive display mode, this module delivers vibrant RGB graphics. The resistive touch panel provides intuitive interaction. With SPI interface, 3.3V voltage supply, and FT812 controller, this module is ideal for various applications. RoHS compliant, lead-free, and REACH compliant, this module ensures environmental responsibility and safety.
Product Specifications
Connection Details Cn1 Connector Type
Male Insulation Displacement Connector (IDC) Box Header
Connection Details Cn1 Pitch Size
2.54 mm
Connection Details Cn1 Size
2 x 10 in
Connection Details Cn2 Connector Type
Top-Contact Flat Flex Cable (FFC) Connector
Connection Details Cn2 Pitch Size
1.00 mm
Connection Details Number Of Cn1 Pins
20
Connection Details Number Of Cn2 Pins
20
Dimension Outline Height
75.8 mm
Dimension Outline Width
135.8 mm
Specifications Back Light Emitting Diode Led Color
White
Specifications Controller
FT812
Specifications Country Of Origin
China
Specifications Diagonal Size
5 in | 127.00 mm
Specifications Display Format
800 x 480 Pixels | Wide Video Graphics Array (WVGA)
Specifications Display Mode
Transmissive
Specifications Display Type
Premium Multi-Domain Vertical Alignment (MVA)
Specifications Export Control Classification Number Eccn Number
EAR99
Specifications Graphics Color
Red, Green, Blue (RGB)
Specifications Interface
Service Provider Interface (SPI)
Specifications International Harmonize Code
8531.20.0020
Specifications Is Dry Pack Required
No
Specifications Is Part Lead Pb Free
Yes
Specifications Is Part Restriction Of Hazardous Substances Rohs
Yes
Specifications Is Part Static Sensitive
Yes
Specifications Lead Time
16 w
Specifications Minimum Order Quantity Moq
100
Specifications Moisture Sensitivity Level Msl
Maintain in Room Temperature
Specifications Multiple Order
Varies Upon Purchase
Specifications North American Free Trade Agreement Nafta Complia
No
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Packaging Type
Box | Bulk | Tray
Specifications Part Status
Stocked
Specifications Registerable
Yes
Specifications Registration Evaluation Authorization And Restric
Yes
Specifications Touch Panel
Resistive
Specifications View
Full
Specifications Voltage Supply
3.3 V
