Premium Air Treatment FIL Series Filters (20-21250 scfm)

Premium Air Treatment FIL Series Filters (20-21250 scfm)

SKU:AIR-533844

Enhance air system performance with Premium FIL Series Filters - top-quality filtration for optimal operation.

Regular price $899.99
Regular price Sale price $899.99
Sale

Initiate Order

Premium Air Treatment FIL Series Filters (20-21250 scfm)

Premium Air Treatment FIL Series Filters (20-21250 scfm)

$899.99

Quantity: 1

Claim Your Seller Account

Premium Air Treatment FIL Series Filters (20-21250 scfm)

Premium Air Treatment FIL Series Filters (20-21250 scfm)

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

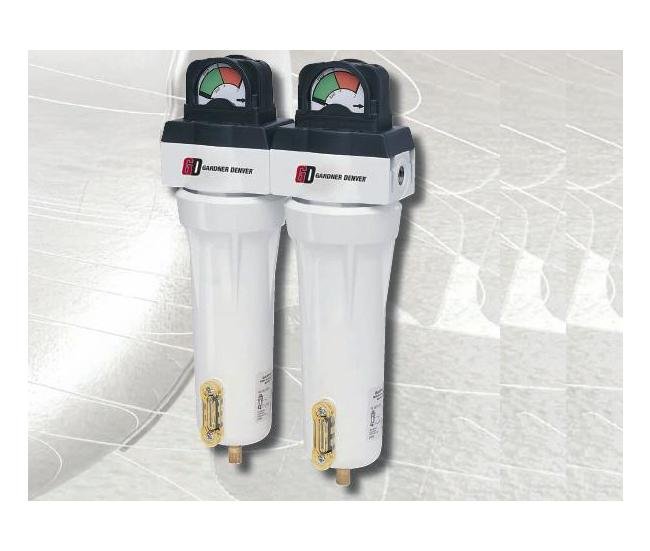

Elevate your air treatment system with the Premium Air Treatment FIL Series Filters designed to provide superior quality filtration. Ideal for removing solid particles, condensed water droplets, and liquid oil/oil vapors, ensuring optimal performance and preventing equipment malfunctions. Features corrosion-proof stainless steel elements, differential pressure indicators, internal automatic drains, and high efficiency oil removal filters. Enhance your operations with this innovative design that prioritizes efficiency, reliability, and maintenance ease.

Product Specifications

Features 0

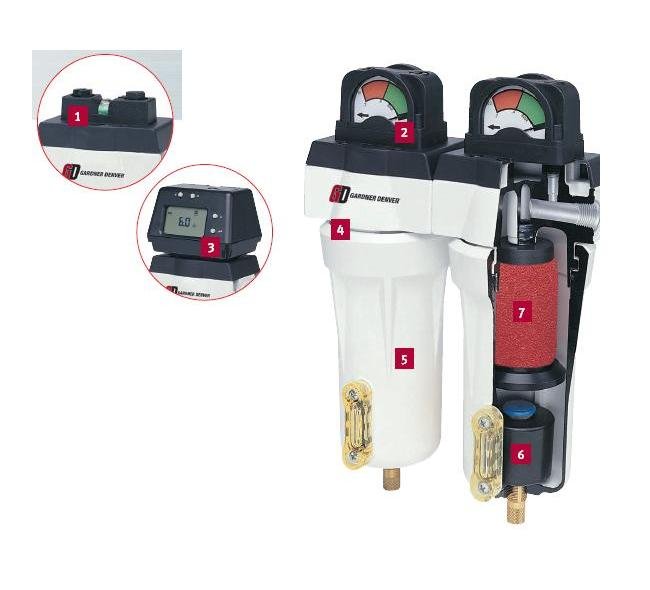

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores
Specifications Connection Sizes
3" NPTM
Specifications Element Model
FIL32EE
Specifications Element Qty
1
Specifications Features
Corrosion Proof Stainless Steel element | Differential Pressure Gauge Indicator | Differential Pressure Slide Indicator | Element Monitor | Internal Automatic Drain Mechanism | Liquid Level Indicator

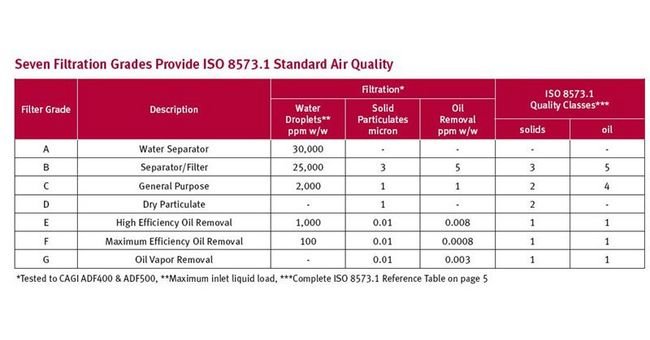

Specifications Filter Grades
High Efficiency Oil Removal Filter (0.008 ppm)
Specifications Height
40.88 in | 1038 mm
Specifications Housing Capacity
325 scfm | 18 m³/min
Specifications Housing Number
32
Specifications Maximum Temperature
150 ºF | 66 ºC
Specifications Max Pressure
Manual Drain - 300 psi | with D or L - 300 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²
Specifications Standard Features
Differential Pressure Gauge Indicator | Internal Automatic Drain Mechanism
Specifications Type Housing
Pressure Vessels
Specifications Weight
36 lb | 16.3 kg
Specifications Width
10.25 in | 260 mm
