Premium Air Treatment FIL Series Filters | 20-21250 scfm
Premium Air Treatment FIL Series Filters | 20-21250 scfm
SKU:AIR-8a8ca4
Upgrade with FIL Series Filters for premium air treatment & superior filtration. Ideal for oil-free compressed air needs.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Premium Air Treatment FIL Series Filters | 20-21250 scfm
$499.99
Quantity: 1
Claim Your Seller Account
Premium Air Treatment FIL Series Filters | 20-21250 scfm
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

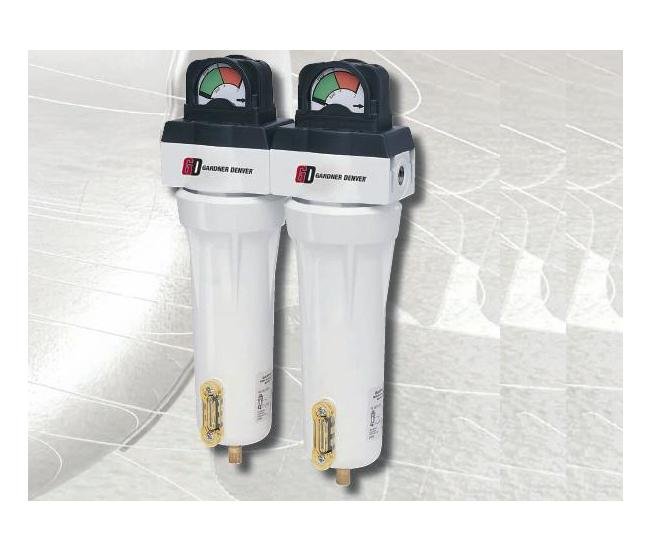

Enhance your compressed air system with Global Air Treatment FIL Series Filters featuring premium quality filtration to tackle solid particles, condensed water droplets, and liquid oil contaminants. With a modular housing design, corrosion-proof stainless steel element, differential pressure indicators, automatic drain mechanism, and energy-saving element monitor, these filters offer innovative design, easy maintenance, and superior filtration. Ideal for industrial applications requiring clean, oil-free compressed air. Compliant with Federal procurement standards and industry-specific certifications.
Product Specifications
Features 0

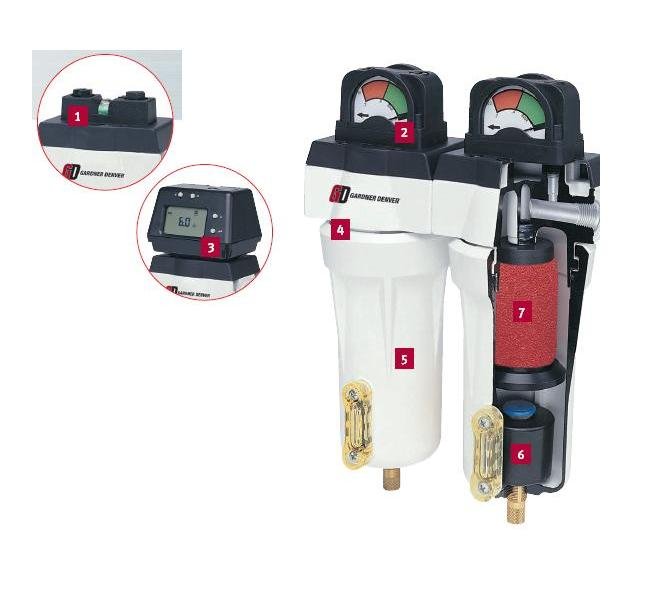

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores
Specifications Connection Sizes
1/2" NPTF
Specifications Element Model
FIL16BE
Specifications Element Qty
1
Specifications Features
Corrosion Proof Stainless Steel element | Differential Pressure Gauge Indicator | Differential Pressure Slide Indicator | Element Monitor | Internal Automatic Drain Mechanism | Liquid Level Indicator
Specifications Filter Grades

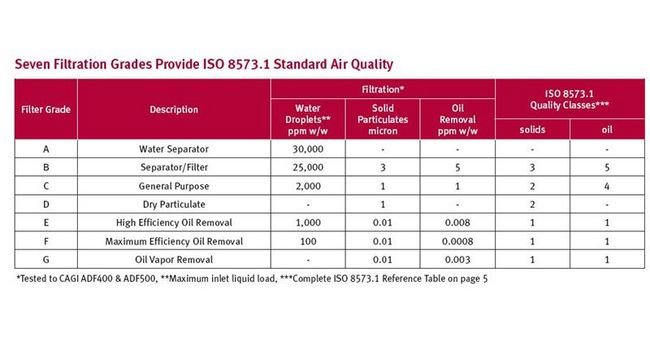

Separator/Filter (3 micron and bulk liquid)
Specifications Height
13.4 in | 340 mm
Specifications Housing Capacity
60 scfm | 1.72 m³/min
Specifications Housing Number
16
Specifications Maximum Temperature
150 ºF | 66 ºC
Specifications Max Pressure
Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²
Specifications Standard Features
Differential Pressure Slide Indicator | Internal Automatic Drain Mechanism
Specifications Type Housing
Modular
Specifications Weight
8.5 lb | 3.9 kg
Specifications Width
4.13 in | 105 mm
