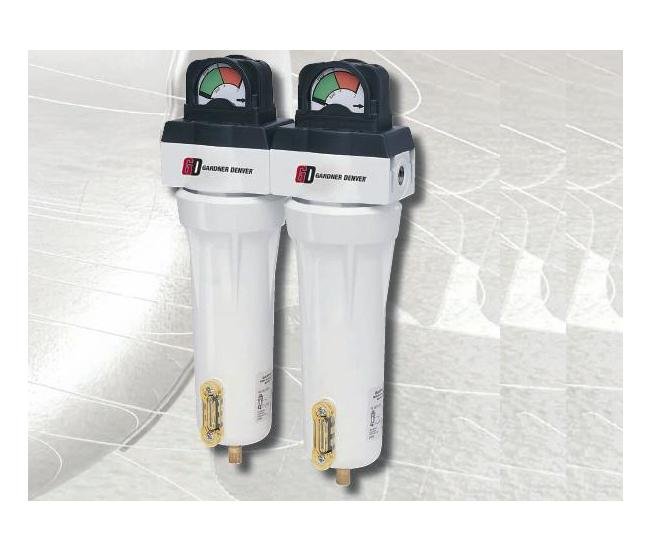

Premium Air Treatment FIL Series Filters (250 scfm)

Name: Premium Air Treatment FIL Series Filters (250 scfm)
Brand: Energy Machinery, Inc.
SKU: AIR-8dbb89
Price: 699.99 USD
Availability: OutOfStock

SKU:AIR-8dbb89

Enhance your compressed air system with our Premium Air Treatment FIL Series Filters, ensuring peak performance and product quality.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your compressed air system with the innovative Premium Air Treatment FIL Series Filters. Designed to provide high-quality filtration, these filters effectively remove solid particles, condensed water droplets, and liquid oil/oil vapors, ensuring optimal performance and product quality. Featuring a modular housing, high-efficiency oil removal filter, corrosion-proof stainless steel element, and internal automatic drain mechanism, these filters offer reliable performance and easy maintenance. With compliance to federal procurement standards and industry-specific certifications, these filters are ideal for industrial and government applications.

Product Specifications

Features 0

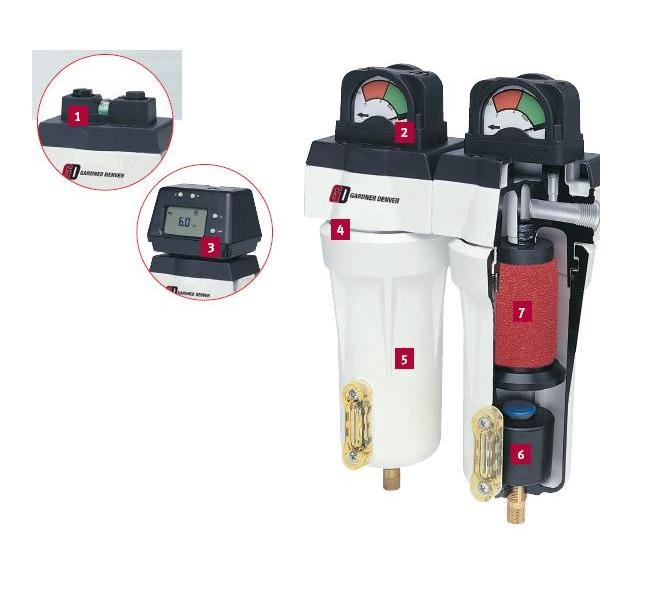

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores

Specifications Connection Sizes

1 1/2" NPTF

Specifications Element Model

FIL22EE

Specifications Element Qty

Specifications Features

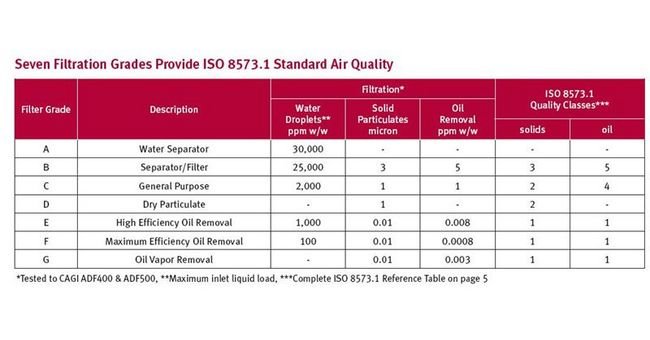

Specifications Filter Grades

High Efficiency Oil Removal Filter (0.008 ppm)

Specifications Height

22.8 in | 579 mm

Specifications Housing Capacity

250 scfm | 7.2 m³/min

Specifications Housing Number

Specifications Maximum Temperature

150 ºF | 66 ºC

Specifications Max Pressure

Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²

Specifications Standard Features

Differential Pressure Gauge Indicator | Internal Automatic Drain Mechanism

Specifications Type Housing

Modular

Specifications Weight

10.2 lb | 4.6 kg

Specifications Width

6.44 in | 164 mm

Premium Air Treatment FIL Series Filters (250 scfm)
