Premium Air Treatment Filters - FIL Series (20-21250 scfm)

Name: Premium Air Treatment Filters - FIL Series (20-21250 scfm)
Brand: Energy Machinery, Inc.
SKU: AIR-082d54
Price: 349.99 USD
Availability: OutOfStock

SKU:AIR-082d54

Upgrade your air system with premium FIL Series Filters for contaminant-free compressed air. Ensure optimal equipment performance and product quality.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

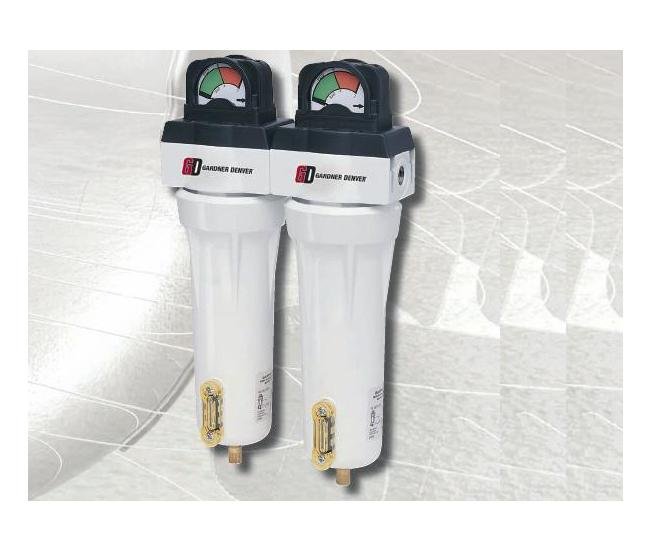

Enhance your compressed air system with the Global Air Treatment FIL Series Filters offering premium quality filtration. Designed to combat solid particles, condensed water droplets, and liquid oil contaminants, these modular filters with a capacity of 20 scfm provide reliable operation at a maximum pressure of 300 psi. Featuring corrosion-proof stainless steel elements, an internal automatic drain mechanism, and differential pressure indicators, these filters ensure efficient and maintenance-friendly air treatment. Ideal for industries requiring oil-free compressed air, these filters guarantee contaminant-free air for critical applications.

Product Specifications

Features 0

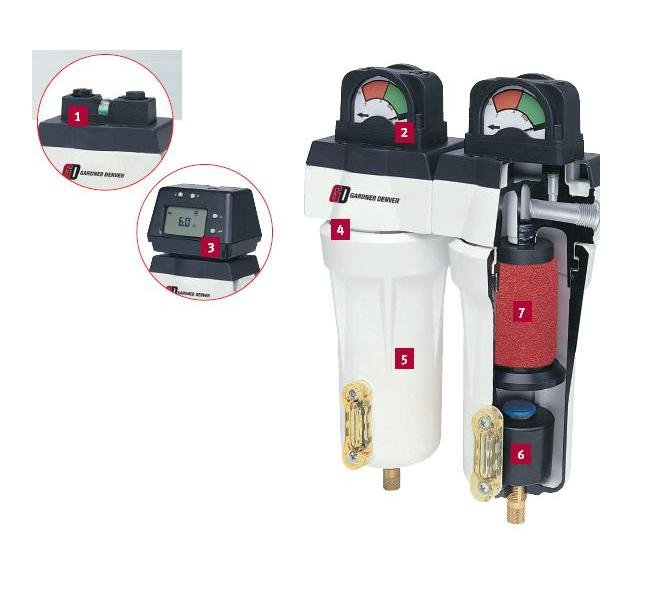

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores

Specifications Connection Sizes

3/8" NPTF

Specifications Element Model

FIL12AE

Specifications Element Qty

Specifications Features

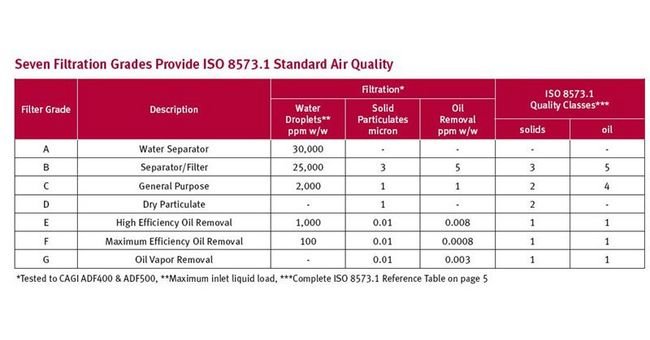

Specifications Filter Grades

Mechanical Separator (bulk liquid)

Specifications Height

8.15 in | 207 mm

Specifications Housing Capacity

20 scfm | 0.57 m³/min

Specifications Housing Number

Specifications Maximum Temperature

150 ºF | 66 ºC

Specifications Max Pressure

Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²

Specifications Standard Features

Internal Automatic Drain Mechanism

Specifications Type Housing

Modular

Specifications Weight

4.2 lb | 1.9 kg

Specifications Width

4.13 in | 105 mm
