Premium Air Treatment Filters - FIL Series (20-21250 scfm)

Premium Air Treatment Filters - FIL Series (20-21250 scfm)

SKU:AIR-2b4160

Ensure clean, oil-free compressed air with FIL Series Filters – top-notch filtration for optimal performance.

Regular price $899.99
Regular price Sale price $899.99
Sale

Initiate Order

Premium Air Treatment Filters - FIL Series (20-21250 scfm)

Premium Air Treatment Filters - FIL Series (20-21250 scfm)

$899.99

Quantity: 1

Claim Your Seller Account

Premium Air Treatment Filters - FIL Series (20-21250 scfm)

Premium Air Treatment Filters - FIL Series (20-21250 scfm)

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The FIL Series Filters from Global Air Treatment are designed to provide top-notch filtration for compressed air systems, effectively removing solid particles, condensed water droplets, and liquid oil contaminants. With a high-efficiency oil removal filter and a corrosion-proof stainless steel element, these filters ensure clean, oil-free compressed air crucial for industries like food and pharmaceutical processes. Featuring innovative design elements, energy-saving monitoring systems, and simple maintenance features, the FIL Series Filters deliver reliable performance and durability, making them ideal for both consumer and institutional applications.

Product Specifications

Features 0

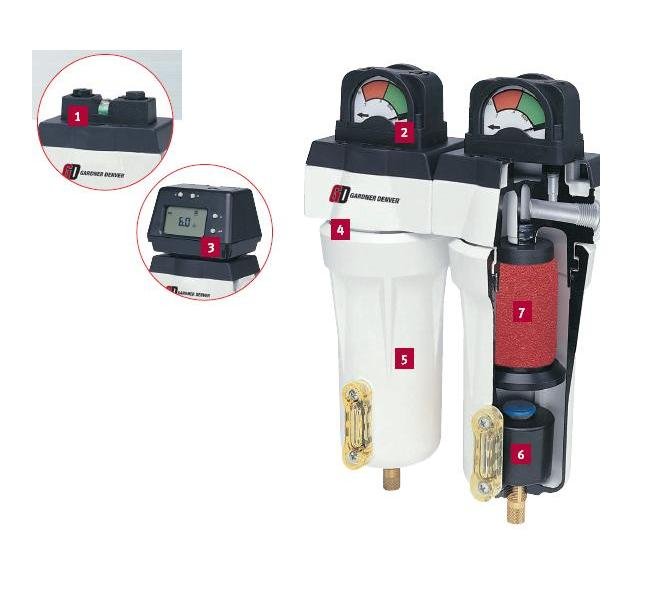

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores
Specifications Connection Sizes
3" NPTM
Specifications Element Model
FIL32EE
Specifications Element Qty
3
Specifications Features
Corrosion Proof Stainless Steel element | Differential Pressure Gauge Indicator | Differential Pressure Slide Indicator | Element Monitor | Internal Automatic Drain Mechanism | Liquid Level Indicator

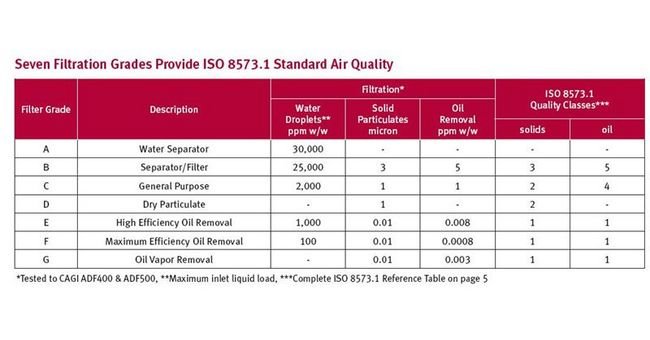

Specifications Filter Grades
High Efficiency Oil Removal Filter (0.008 ppm)
Specifications Height
49.00 in | 1245 mm
Specifications Housing Capacity
1875 scfm | 54 m³/min
Specifications Housing Number
38
Specifications Maximum Temperature
150 ºF | 66 ºC
Specifications Max Pressure
Manual Drain - 225 psi | with D or L - 225 psi | Manual Drain - 15.8 kgf/cm² | with D or L - 15.8 kgf/cm²
Specifications Standard Features
Differential Pressure Gauge Indicator | Drain plugs standard. Externally mounted automatic drains are available.
Specifications Type Housing
Pressure Vessels
Specifications Weight
120 lb | 54.4 kg
Specifications Width
16.25 in | 413 mm
