Premium Aluminum/Stainless Steel Conductor Bars with Pre-installed Splice

Name: Premium Aluminum/Stainless Steel Conductor Bars with Pre-installed Splice
Brand: Clutch Engineering
SKU: CRA-2c4afb
Price: 299.99 USD
Availability: OutOfStock

SKU:CRA-2c4afb

Enhance power distribution efficiency with Premium Aluminum/Stainless Steel Conductor Bars featuring pre-installed splices.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your power distribution system with our Premium Aluminum/Stainless Steel Conductor Bars featuring a pre-installed splice for quick and secure connections. Rated at 315A, these bars ensure efficient current flow with low impedance and resistance. The UV-stable black cover, PVC material, and self-extinguishing properties guarantee durability and safety. With industry-leading specifications like a Vicat softening temperature of 160°F and a maximum system voltage of 600V, these conductor bars are ideal for crane control and electrification applications.

Product Specifications

Cover Specifications Cover Material

PVC

Cover Specifications Dielectric Strength

180 kv/cm

Cover Specifications Flame Test

Self Extinguishing

Cover Specifications Oxygen Index

54%

Cover Specifications Specific Density

1.5 g/cmÂ³

Cover Specifications Surface Resistivity

1011 Î©

Cover Specifications Vicat Softening Temperature

160 ÂºF | 71.1 ÂºC

Cover Specifications Volume Resistivity

>1015 Î©/cm

Specifications Amperage Rating

315 A

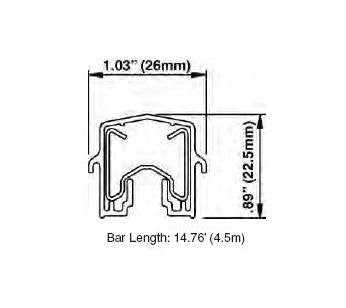

Specifications Bar Length

4.5 m

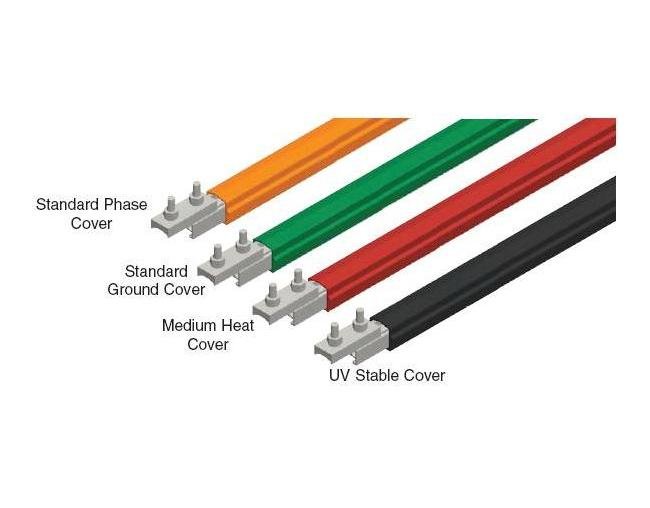

Specifications Cover Type

UV Stable (Black)

Specifications Cross Sectional Area

120 mmÂ²

Specifications Expansion Sections

150 m

Specifications Impedance Z For Ac At 20 C

0.000288 Î©/m

Specifications Material

Aluminum / Stainless Steel

Specifications Maximum Allowable Ambient Temperature

25 ÂºC

Specifications Maximum System Voltage Ac Or Dc Per Ul Listing

600 V

Specifications Minimum Bending Radius

1.5 m

Specifications Minimum Pitch Centers Standard

43 mm

Specifications Nominal Current

315 A

Specifications Resistance R For Dc At 20 C

0.000261 Î©/m

Specifications Support Pitch Lateral

1125 mm

Specifications Support Pitch Standard

1500 mm

Specifications Weight

5.1 lb | 2.3 kg
