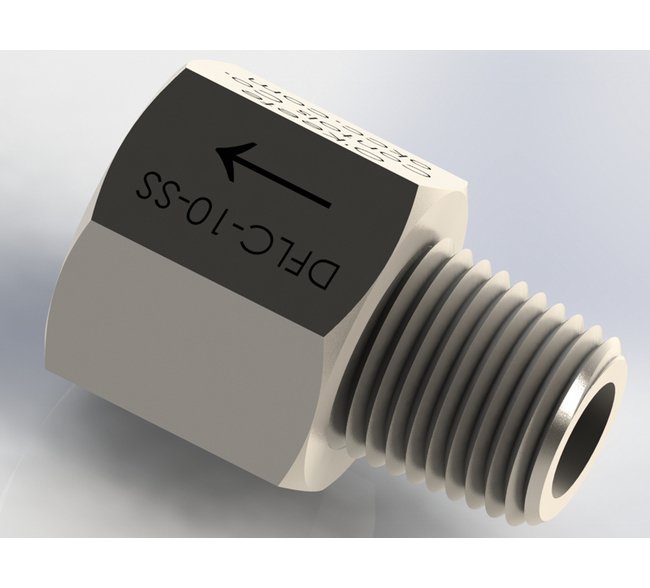

Premium Ball-Type Check Valves - NPT Connection, Brass & Stainless Steel Options
Premium Ball-Type Check Valves - NPT Connection, Brass & Stainless Steel Options
SKU:CHE-b969c2
Reliable Ball-Type Check Valves for precise fluid control in liquids or gases. Durable, high-pressure capable with minimal leakage.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Premium Ball-Type Check Valves - NPT Connection, Brass & Stainless Steel Options
$34.99
Quantity: 1
Claim Your Seller Account
Premium Ball-Type Check Valves - NPT Connection, Brass & Stainless Steel Options
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control with our premium Ball-Type Check Valves. Available in 10-32, 1/8" NPT, and 1/4" NPT sizes, constructed from high-grade 303 SS and 304 SS materials. With a cracking pressure of 2 psig, maximum temp of 300°F, and 200 psig max operating pressure, they ensure reliable one-way flow with minimal leakage. Featuring all-metal construction for durability, high pressure capability, and long life operation.
Product Specifications
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
2 psig
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
