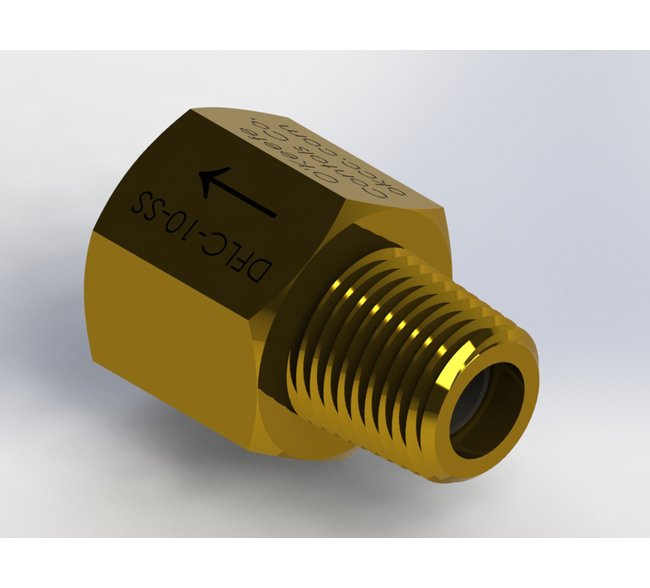

Premium Brass Check Valves, Ball Type - NPT Connection
Premium Brass Check Valves, Ball Type - NPT Connection
SKU:CHE-32e20e
Reliable brass check valves for unidirectional flow, minimal seat leakage, and high-pressure compatibility.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Premium Brass Check Valves, Ball Type - NPT Connection
$39.99
Quantity: 1
Claim Your Seller Account
Premium Brass Check Valves, Ball Type - NPT Connection
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional performance with our premium brass ball type check valves. Available in 10-32, 1/8" NPT, and 1/4" NPT sizes, these valves ensure unidirectional flow with zero reverse flow. Constructed with durable 304 SS ball materials and max operating pressure of 200 psig, they offer reliable operation with minimal seat leakage. Ideal for liquids or gases, these valves are designed for long-term use with high-pressure capability.
Product Specifications
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
0 psig
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
