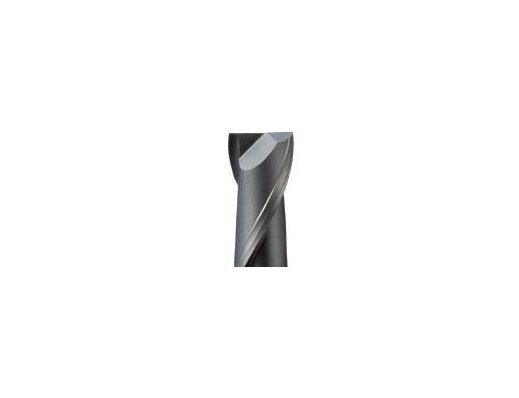

Premium Diamond Coated 2-Flute Square End Mill

Name: Premium Diamond Coated 2-Flute Square End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-9c1ec6
Price: 39.99 USD
Availability: OutOfStock

SKU:DIA-9c1ec6

Achieve superior cutting performance and extended tool life with our Premium Diamond Coated 2-Flute End Mill.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

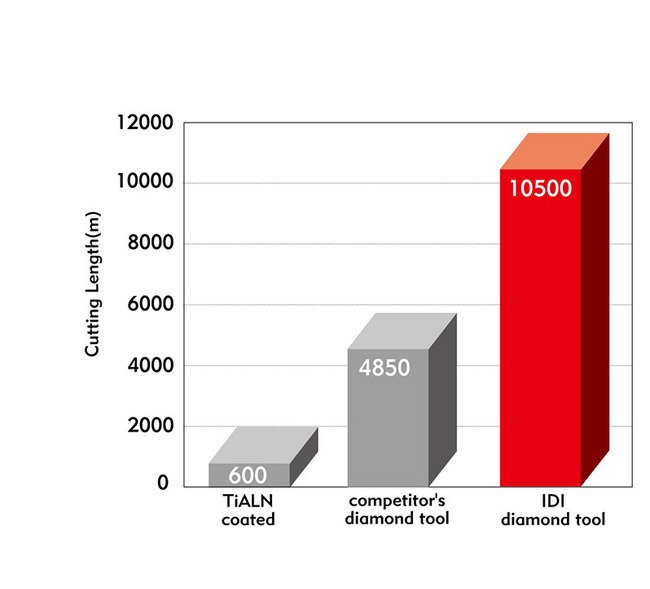

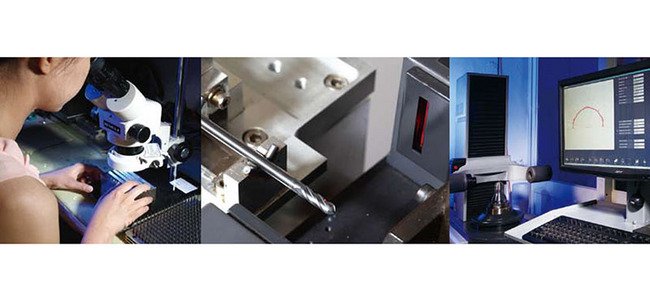

Experience unparalleled cutting performance and exceptional tool longevity with our Premium Diamond Coated 2-Flute Square End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this tool surpasses uncoated alternatives by lasting 12-20 times longer. Precision-engineered using advanced equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous quality checks to ensure perfection. Ideal for graphite milling in the semiconductor and die-mold industries, machining composite materials like CFRP and ceramics, this end mill guarantees superior results in demanding applications.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

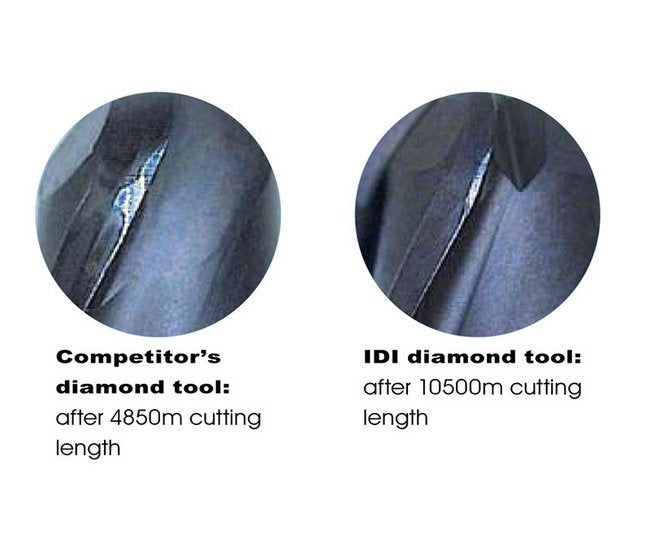

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

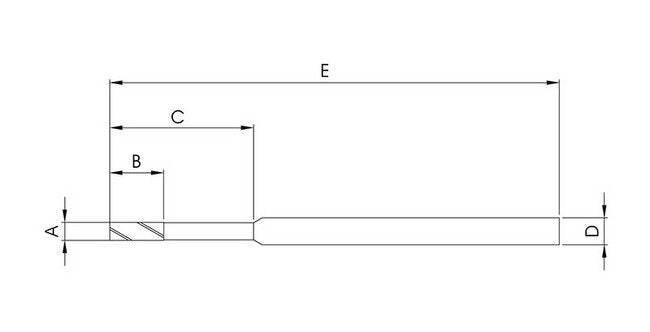

Specifications Cutting Diameter A

0.5 mm

Specifications Flute Length B

1 mm

Specifications Number Of Flute

Specifications Overall Length E

40 mm

Specifications Reach C

1 mm

Specifications Shank Diameter D

3 mm

Premium Diamond Coated 2-Flute Square End Mill
