Premium Diamond Negative GP1 Chipbreaker with Hole - 0.194-0.200 in

Name: Premium Diamond Negative GP1 Chipbreaker with Hole - 0.194-0.200 in
Brand: Ultra-Met
SKU: TUR-af3675
Price: 24.99 USD
Availability: OutOfStock

SKU:TUR-af3675

Precise Diamond Negative GP1 Chipbreaker for General Purpose operations - 0.194-0.200 in thickness

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

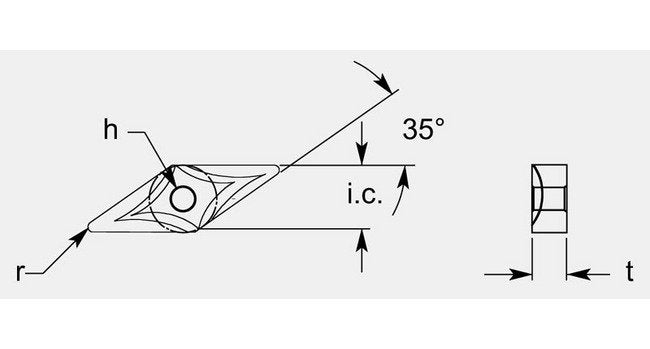

The Premium Diamond Negative GP1 Chipbreaker with Hole is a high-quality turning blank designed for precision work. With a thickness of 0.194-0.200 inches, an inscribed circle of 0.373-0.377 inches, and a radius of 1/32 inch, this chipbreaker offers exceptional performance. Featuring a 35-degree angle and a hole diameter of 0.148-0.152 inches, it is classified for General Purpose operations. Grade availability is customizable upon request, ensuring suitability for various applications. This chipbreaker is engineered to meet the stringent standards of institutional buyers, providing reliability and efficiency in machining tasks.

Product Specifications

Classifications Operation

General Purpose

Dimensional Specification Angle A

35 Âº

Dimensional Specification Hole

0.148 / 0.152 in

Dimensional Specification Inscribed Circle Ic

0.373/0.377 in

Dimensional Specification Radius R

1/32 in

Dimensional Specification Thickness T

0.194 / 0.200 in

Grade Availability Grade Availability

Available on Request
