Premium Diamond Negative Turning Blank with Hole, Thickness 0.135 / 0.143 in
Premium Diamond Negative Turning Blank with Hole, Thickness 0.135 / 0.143 in
SKU:TUR-d780f9
Precision meets versatility with our Premium Diamond Negative Turning Blank. Ideal for turning applications. Grade options available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Premium Diamond Negative Turning Blank with Hole, Thickness 0.135 / 0.143 in
$39.99
Quantity: 1
Claim Your Seller Account
Premium Diamond Negative Turning Blank with Hole, Thickness 0.135 / 0.143 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

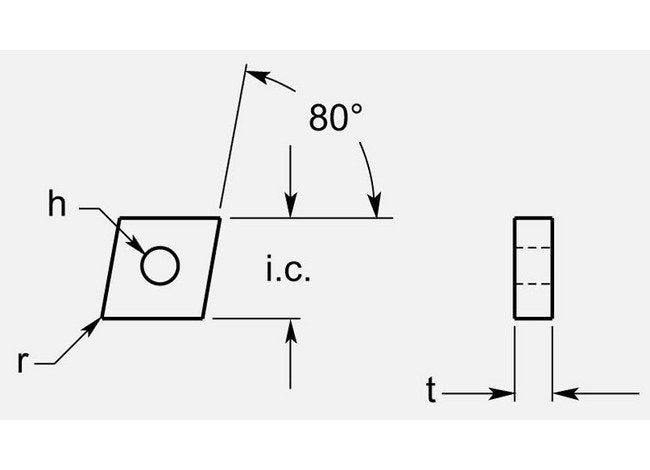

Experience superior precision and durability with our Premium Diamond Negative Turning Blank with Hole. Crafted with a thickness of 0.135 / 0.143 inches and an inscribed circle of 0.639 / 0.645 inches, this turning blank ensures exceptional performance in turning applications. With a zero radius and an 80-degree angle, it offers unparalleled accuracy. The incorporated hole provides additional versatility for your machining needs, ranging from 0.248 to 0.252 inches. Grade availability can be tailored to your specific requirements, ensuring a perfect fit for your projects.
Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.248 / 0.252 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Grade Availability Grade Availability
Available on Request
