Premium Diamond Positive Chipbreaker with Built-in Hole, 0.186/0.191 in
Premium Diamond Positive Chipbreaker with Built-in Hole, 0.186/0.191 in
SKU:TUR-d37c5a
Optimize turning accuracy with our Premium Diamond Positive Chipbreaker. Thickness: 0.186/0.191 in. Customizable Grade Availability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Premium Diamond Positive Chipbreaker with Built-in Hole, 0.186/0.191 in
$34.99
Quantity: 1
Claim Your Seller Account
Premium Diamond Positive Chipbreaker with Built-in Hole, 0.186/0.191 in
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your turning precision with our Premium Diamond Positive Chipbreaker featuring a built-in hole for improved chip evacuation. With a thickness of 0.186/0.191 inches, an Inscribed Circle of 0.389/0.395 inches, and an 80-degree angle, this chipbreaker ensures superior cutting performance. Grade Availability is customizable upon request, meeting the highest industry standards for quality and reliability.

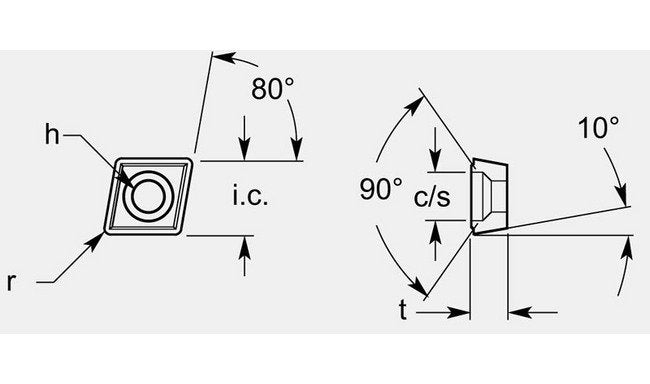

Product Specifications
Dimensional Specification Angle A
80 º
Dimensional Specification Cs
0.247 / 0.253 in
Dimensional Specification Hole
0.157 / 0.163 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.186 / 0.191 in
Grade Availability Grade Availability
Available on Request
