Premium Diamond Positive Turning Blanks with Dimple, 0.135 / 0.143 in
Premium Diamond Positive Turning Blanks with Dimple, 0.135 / 0.143 in
SKU:TUR-9fae68
Premium Diamond Positive Turning Blanks - Precise, Durable, and Customizable. Ideal for high-performance machining.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Premium Diamond Positive Turning Blanks with Dimple, 0.135 / 0.143 in
$29.99
Quantity: 1
Claim Your Seller Account
Premium Diamond Positive Turning Blanks with Dimple, 0.135 / 0.143 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision and durability with our Premium Diamond Positive Turning Blanks. With a thickness of 0.135 / 0.143 inches and an Inscribed Circle of 0.389 / 0.395 inches, these blanks are designed for high-performance turning operations. Crafted with an 80-degree Angle and a 1/32 inch Radius, they ensure efficient and accurate machining. The Dimple Diameter of 0.187 inches adds versatility to your projects. Grade availability tailored to your needs upon request.
Product Specifications

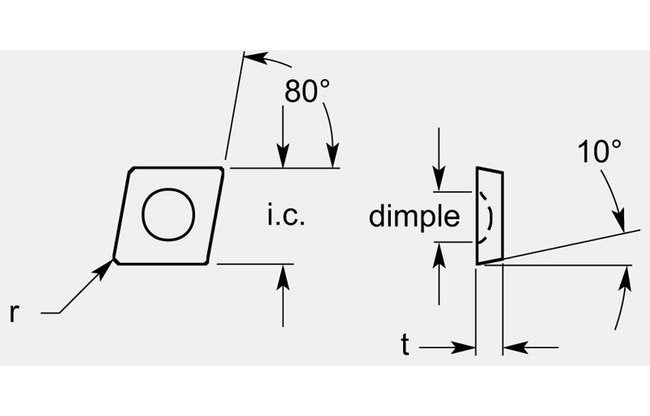

Dimensional Specification Angle A
80 º
Dimensional Specification Dimple Diameter
0.187 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Grade Availability Grade Availability
Available on Request
