Premium Female NPT to Male BSP Taper Adapter
Premium Female NPT to Male BSP Taper Adapter
SKU:FIT-ab1ab4
Achieve leak-free precision connections with our Premium Female NPT to Male BSP Taper Adapter. Ideal for NPT and ISO Thread systems. Crafted from high-quality stainless steel or brass for durability and reliability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Premium Female NPT to Male BSP Taper Adapter
$24.99
Quantity: 1
Claim Your Seller Account
Premium Female NPT to Male BSP Taper Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Female NPT to Male BSP Taper Adapter by Parker sets the standard in quality and precision engineering. Ideal for connecting components with NPT and ISO Thread configurations, it ensures leak-free joints with superior performance. Crafted from stainless steel or brass, it withstands high pressures, offering durability and reliability for industrial applications. Compliant with stringent ISO standards, Parker ISO Conversion Fittings guarantee seamless connections for efficient operations.
Product Specifications

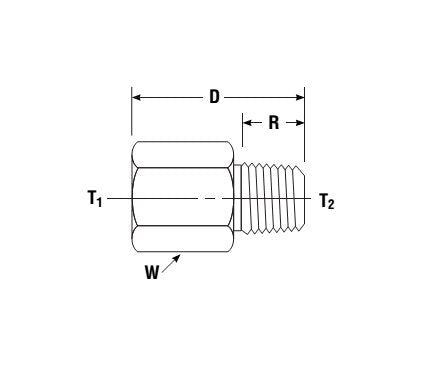

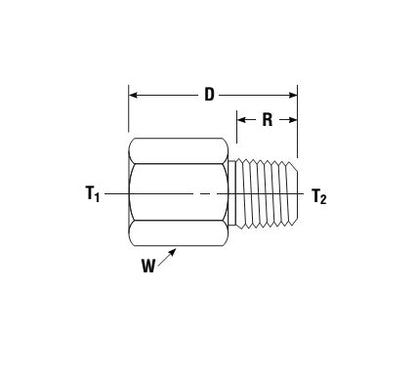

Dimensions Bspt Thread T2
1-11
Dimensions Connection Type
FNPT to BSPT
Dimensions D
2.28 in
Dimensions Npt Thread T1
1-1 11/2
Dimensions R
.94 in
Dimensions Working Pressure Brass
2200 psi | 150 bar
Dimensions Working Pressure Stainless Steel
4100 psi | 280 bar
Dimensions W Hex
1 5/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
