Premium FIL Series Air Treatment Filters (20 - 21250 scfm)

Name: Premium FIL Series Air Treatment Filters (20 - 21250 scfm)
Brand: Energy Machinery, Inc.
SKU: AIR-50ef65
Price: 299.99 USD
Availability: OutOfStock

SKU:AIR-50ef65

Enhance your compressed air system with Premium FIL Series Air Treatment Filters for superior filtration and performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your compressed air system with the Premium FIL Series Air Treatment Filters offering top-tier filtration for solid particles, condensed water droplets, and liquid oil contaminants. With a modular design housing, maximum efficiency oil removal filter, corrosion-proof stainless steel element, and internal automatic drain mechanism, these filters ensure optimal air quality and equipment performance. The innovative design features differential pressure indicators, energy-saving element monitor, and user-friendly maintenance for easy monitoring and upkeep. From corrosion resistance to superior filtration, these filters are ideal for food, pharmaceutical processes, and diverse industrial applications, meeting stringent quality and performance standards.

Product Specifications

Features 0

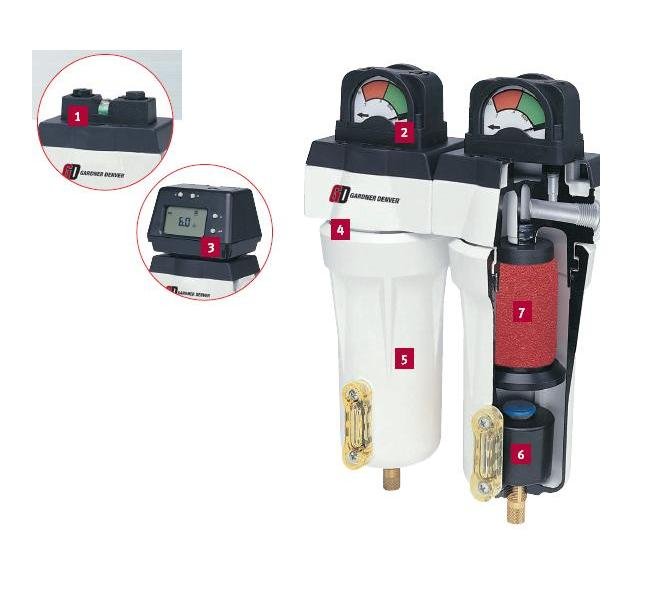

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores

Specifications Connection Sizes

1/2" NPTF

Specifications Element Model

FIL16FE

Specifications Element Qty

Specifications Features

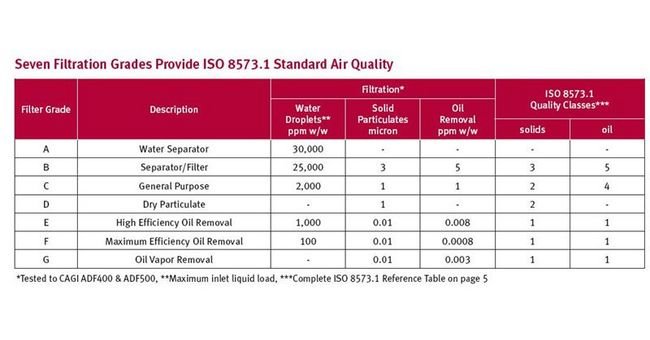

Specifications Filter Grades

Maximum Efficiency Oil Removal Filter (0.0008 ppm)

Specifications Height

13.4 in | 340 mm

Specifications Housing Capacity

60 scfm | 1.72 m³/min

Specifications Housing Number

Specifications Maximum Temperature

150 ºF | 66 ºC

Specifications Max Pressure

Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²

Specifications Standard Features

Differential Pressure Slide Indicator | Internal Automatic Drain Mechanism

Specifications Type Housing

Modular

Specifications Weight

8.5 lb | 3.9 kg

Specifications Width

4.13 in | 105 mm
