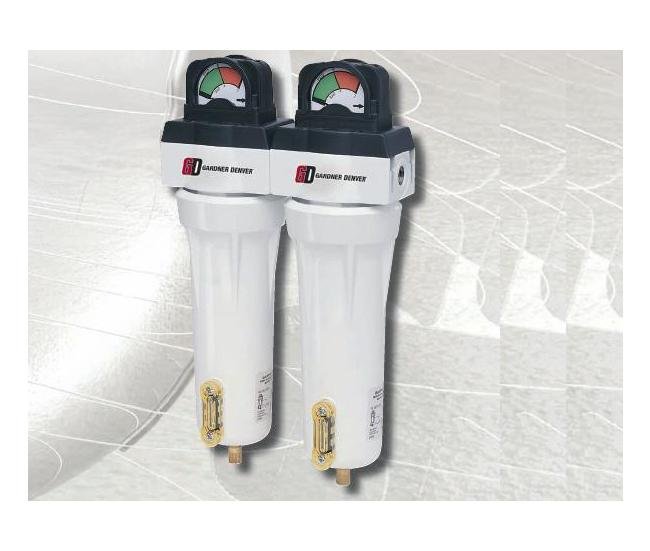

Ensure peak performance and longevity for your compressed air system with the Premium FIL Series Air Treatment Filters. Designed to combat solid particles, condensed water droplets, and liquid oil contaminants, these filters offer superior filtration with a Dry Desiccant Afterfilter (1 micron). Featuring a corrosion-proof stainless steel element, differential pressure gauge indicator, automatic drain mechanism, and modular housings for easy maintenance and energy efficiency. Ideal for food, pharmaceutical, and industrial applications, these filters prioritize air quality and equipment protection.

Product Specifications

Features 0

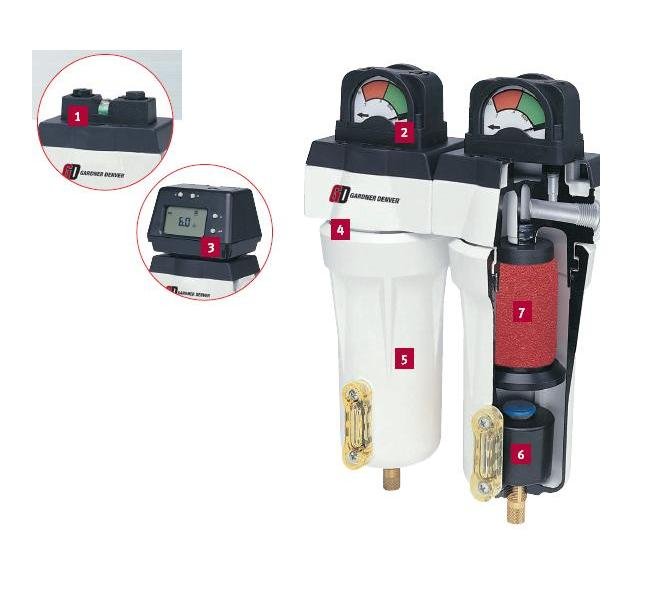

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores
Specifications Connection Sizes
10" fig.
Specifications Element Model
FIL32DE
Specifications Element Qty
34
Specifications Features
Corrosion Proof Stainless Steel element | Differential Pressure Gauge Indicator | Differential Pressure Slide Indicator | Element Monitor | Internal Automatic Drain Mechanism | Liquid Level Indicator
Specifications Filter Grades
Dry Desiccant Afterfilter (1 micron)
Specifications Height
70.94 in | 1802 mm
Specifications Housing Capacity
21250 scfm | 608 m³/min
Specifications Housing Number
54
Specifications Maximum Temperature
150 ºF | 66 ºC
Specifications Max Pressure
Manual Drain - 225 psi | with D or L - 225 psi | Manual Drain - 15.8 kgf/cm² | with D or L - 15.8 kgf/cm²
Specifications Standard Features
Differential Pressure Gauge Indicator
Specifications Type Housing
Pressure Vessels
Specifications Weight
1412 lb | 640 kg
Specifications Width
45.88 in | 1165 mm
