Premium FIL Series Air Treatment Filters (20-21250 scfm)

Name: Premium FIL Series Air Treatment Filters (20-21250 scfm)
Brand: Energy Machinery, Inc.
SKU: AIR-b5445a
Price: 349.99 USD
Availability: OutOfStock

SKU:AIR-b5445a

Enhance your compressed air system with premium FIL Series Filters for clean, oil-free air. Reliable filtration from solid particles, water droplets, and oil vapors. Ideal for food, pharmaceutical processes.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

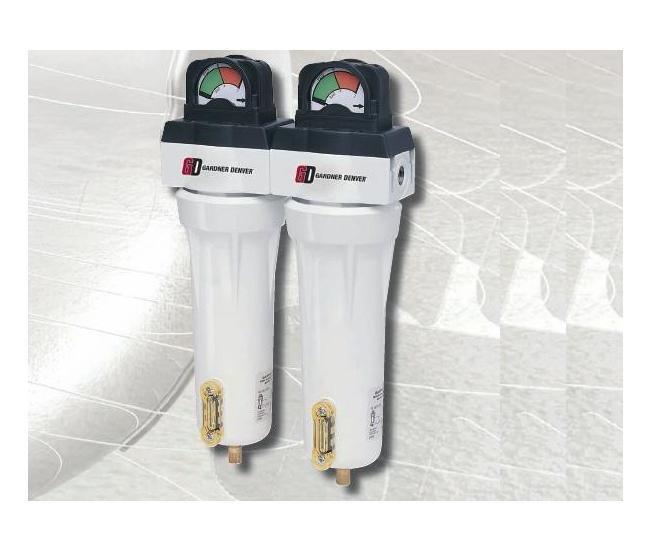

Upgrade your compressed air system with the premium-quality FIL Series Filters. Designed to effectively filter solid particles, condensed water droplets, and liquid oil/oil vapors, these modular filters offer corrosion-proof stainless steel elements, internal automatic drains, and superior filtration grades. Featuring innovative design elements like a differential pressure gauge indicator and element monitor, these filters ensure reliable performance and easy maintenance. Ideal for food, pharmaceutical processes, and industrial applications, these filters meet stringent procurement standards and deliver clean, oil-free compressed air.

Product Specifications

Features 0

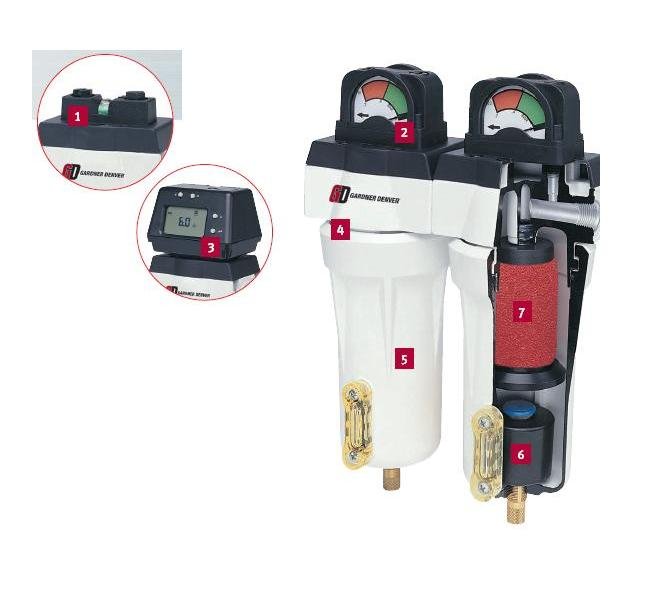

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores

Specifications Connection Sizes

3/8" NPTF

Specifications Element Model

FIL12GE

Specifications Element Qty

Specifications Features

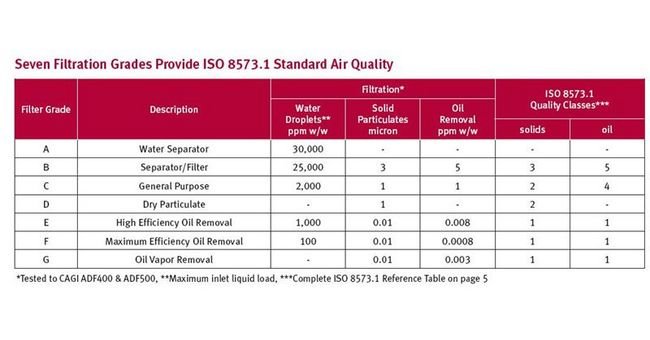

Specifications Filter Grades

Oil Vapor Removal Filter (activated carbon)

Specifications Height

8.15 in | 207 mm

Specifications Housing Capacity

20 scfm | 0.57 m³/min

Specifications Housing Number

Specifications Maximum Temperature

150 ºF | 66 ºC

Specifications Max Pressure

Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²

Specifications Standard Features

NONE (Time-based Element Monitor recommended)

Specifications Type Housing

Modular

Specifications Weight

4.2 lb | 1.9 kg

Specifications Width

4.13 in | 105 mm
