Premium FIL Series Air Treatment Filters (20-21250 scfm)

Name: Premium FIL Series Air Treatment Filters (20-21250 scfm)
Brand: Energy Machinery, Inc.
SKU: AIR-430a09
Price: 499.99 USD
Availability: OutOfStock

SKU:AIR-430a09

Enhance your compressed air system with premium FIL Series Filters - optimal filtration, durability, and reliability for institutional buyers.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

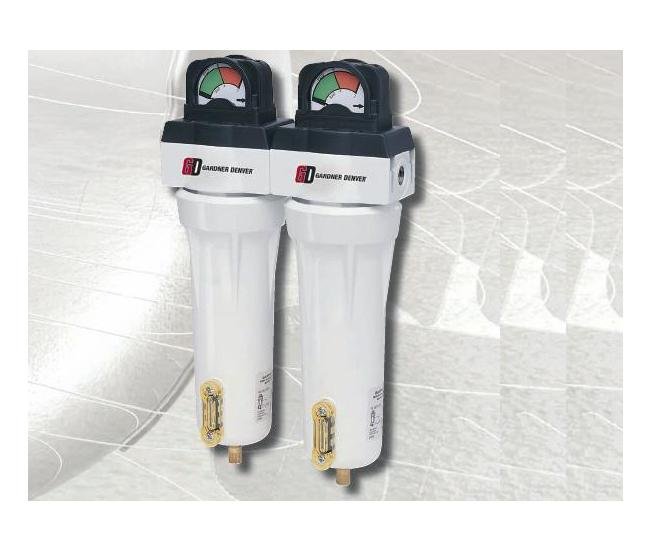

Elevate your compressed air system with the premium quality filtration of the FIL Series Filters. Designed to combat solid particles, condensed water droplets, and liquid oil contaminants, these filters ensure optimal performance and longevity for your pneumatic equipment. Features like corrosion-proof stainless steel elements, differential pressure indicators, and modular housing with automatic drains make maintenance a breeze. With a focus on high filtration efficiency and durability, the FIL Series Filters offer peace of mind and reliability in air treatment applications. Compliant with Federal/DoD procurement standards and industry-specific certifications, these filters are a trusted choice for institutional buyers.

Product Specifications

Features 0

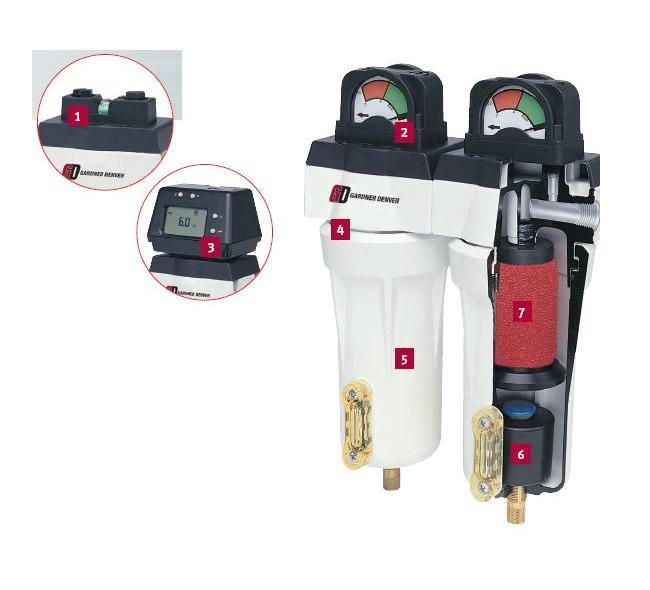

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores

Specifications Connection Sizes

1 1/2" NPTF

Specifications Element Model

FIL24GE

Specifications Element Qty

Specifications Features

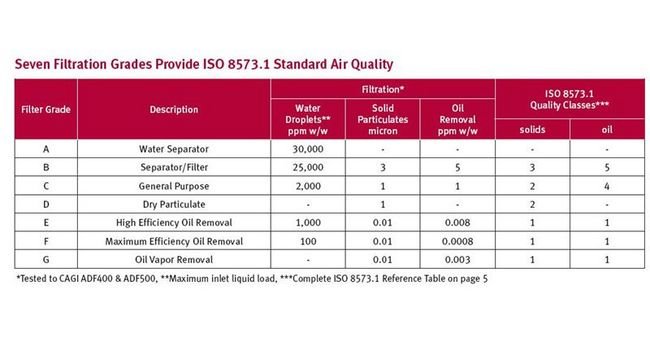

Specifications Filter Grades

Oil Vapor Removal Filter (activated carbon)

Specifications Height

27.29 in | 693 mm

Specifications Housing Capacity

375 scfm | 11 m³/min

Specifications Housing Number

Specifications Maximum Temperature

150 ºF | 66 ºC

Specifications Max Pressure

Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²

Specifications Standard Features

NONE (Time-based Element Monitor recommended)

Specifications Type Housing

Modular

Specifications Weight

11.3 lb | 5.1 kg

Specifications Width

6.44 in | 164 mm
