Premium FIL Series Filters - Modular Housing (485 scfm)
Premium FIL Series Filters - Modular Housing (485 scfm)
SKU:AIR-bc3ef4
Enhance air quality with premium FIL Series Filters - Modular Housing (485 scfm) for clean, oil-free compressed air.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Premium FIL Series Filters - Modular Housing (485 scfm)
$499.99
Quantity: 1
Claim Your Seller Account
Premium FIL Series Filters - Modular Housing (485 scfm)
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

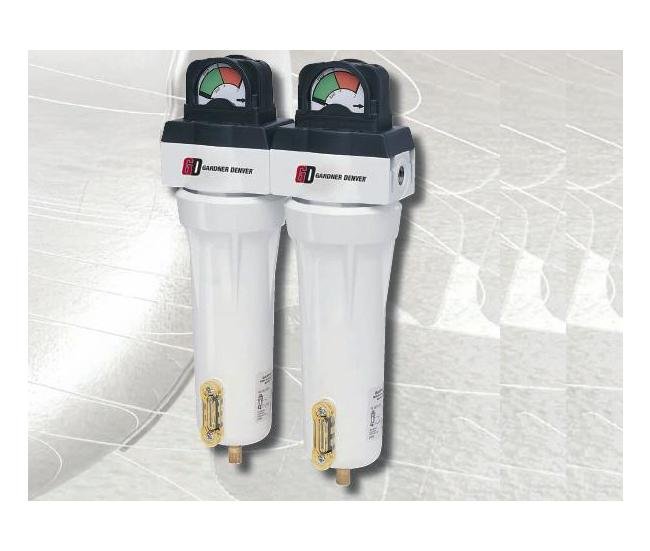

Upgrade your compressed air system with the premium FIL Series Filters designed to provide superior air filtration, separating solid particles, condensed water droplets, and liquid oil to prevent equipment malfunctions and contamination. Featuring a modular housing with a capacity of 485 scfm, Mechanical Separator filter grades, 2" NPTF connection sizes, and a maximum pressure of 300 psi. Key features include a corrosion-proof stainless steel element, differential pressure gauge indicator, internal automatic drain mechanism, and liquid level indicator for optimal performance and maintenance. Ensure clean, oil-free compressed air for critical applications in food and pharmaceutical processes.
Product Specifications
Features 0

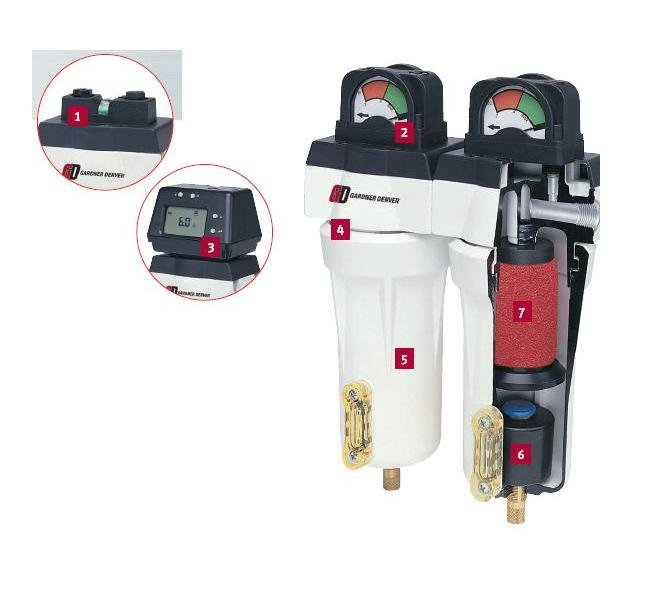

An Innovative Design for all Applications 1. Slide Indicator Standard on 20–60 scfm models Changes color based on differential pressure 2. Gauge Standard on 100–21,250 scfm models Dual gauge face allows housings to be mounted in any flow direction Indicates element change-out based on differential pressure Large easy-to-read gauge face Remote mounting possible 3. Energy Saving Element Monitor Optional on all models Three modes determine element change: time, differential pressure, element performance 4. Simple Maintenance 1/8" turn, self-locking bayonet head to bowl connection (up through 1" connection sizes) Audible warning by escaping air if housing is not depressurized before disassembly Ribbed bowls allow use of C-spanner Color-coded elements for easy identification 5. Modular Housings Save Space and Time Standard on 20–780 scfm models Large flow paths reduce pressure drop Chromated and epoxy powder painted (interior and exterior) add durability and corrosion resistance MWP 300 psig (21 bar) Can be mounted for left or right entry High-quality aluminum, zinc, and steel materials 6. Internal Automatic Drains Reliable discharge of condensate Pilot operated, pneumatically actuated, particulate-resistant mechanism Viton seals and inlet screen for additional protection 7. Element Grades Offer Superior Filtration Large effective surface areas ensure high capture rates Large open areas minimize pressure drop Silicone-free, withstand temperatures to 150°F (66°C) Push-on elements for quick replacement Corrosion resistant, stainless steel cores
Specifications Connection Sizes
2" NPTF
Specifications Element Model
FIL26AE
Specifications Element Qty
1
Specifications Features
Corrosion Proof Stainless Steel element | Differential Pressure Gauge Indicator | Differential Pressure Slide Indicator | Element Monitor | Internal Automatic Drain Mechanism | Liquid Level Indicator

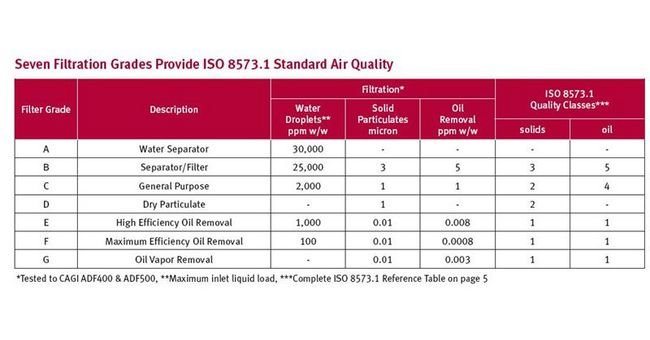

Specifications Filter Grades
Mechanical Separator (bulk liquid)
Specifications Height
31.08 in | 789 mm
Specifications Housing Capacity
485 scfm | 14 m³/min
Specifications Housing Number
26
Specifications Maximum Temperature
150 ºF | 66 ºC

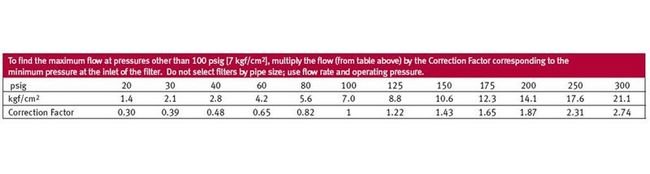

Specifications Max Pressure
Manual Drain - 300 psi | with D or L - 250 psi | Manual Drain - 21 kgf/cm² | with D or L - 21 kgf/cm²
Specifications Standard Features
Drain plugs standard. Externally mounted automatic drains are available.
Specifications Type Housing
Modular
Specifications Weight
28 lb | 12.7 kg
Specifications Width
7.63 in | 194 mm
