Premium Forged Steel Unions - Class 3000, 1 inch NPS
Premium Forged Steel Unions - Class 3000, 1 inch NPS
SKU:FIT-1105d3
High-performance Forged Steel Unions for Class 3000 applications, ANSI B16.11/B1.20.1 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Premium Forged Steel Unions - Class 3000, 1 inch NPS
$29.99
Quantity: 1
Claim Your Seller Account
Premium Forged Steel Unions - Class 3000, 1 inch NPS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Forged Steel Unions are meticulously crafted for durability and precision. With a Class 3000 rating, these unions provide a secure and leak-free connection suitable for high-pressure applications. The robust Socket-Weld or Threaded options ensure versatile installation, meeting ANSI B16.11/B1.20.1 standards. Designed with exacting dimensions and weighing 0.74 kg, these unions guarantee reliability and performance in industrial settings.
Ready to Grow Without Cash Flow Constraints?

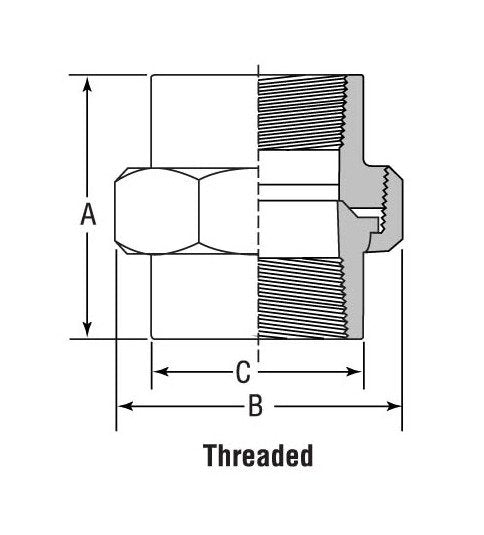

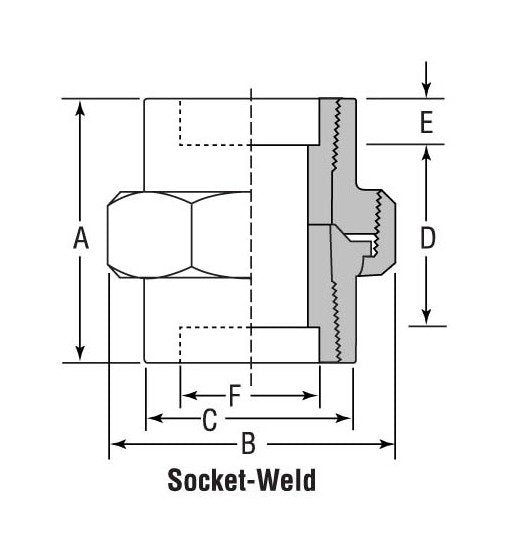

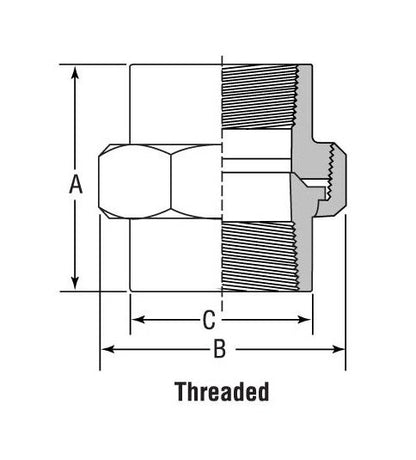

Product Specifications
Specifications Class
3000
Specifications Connection Type
Socket-Weld | Threaded
Specifications Dimension A
62.00 mm
Specifications Dimension B
71.00 mm
Specifications Dimension C
45 mm
Specifications Dimension D
35.00 mm
Specifications Dimension E
14.00 mm
Specifications Dimension F
34.00 mm
Specifications Dn
25
Specifications Nps
1
Specifications Weight
0.74 kg
