Premium Four Point Contact Ball Bearings
Premium Four Point Contact Ball Bearings
SKU:ANG-bcfb9f
High-performance Four Point Contact Ball Bearings for industrial use
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Premium Four Point Contact Ball Bearings
$149.99
Quantity: 1
Claim Your Seller Account
Premium Four Point Contact Ball Bearings
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

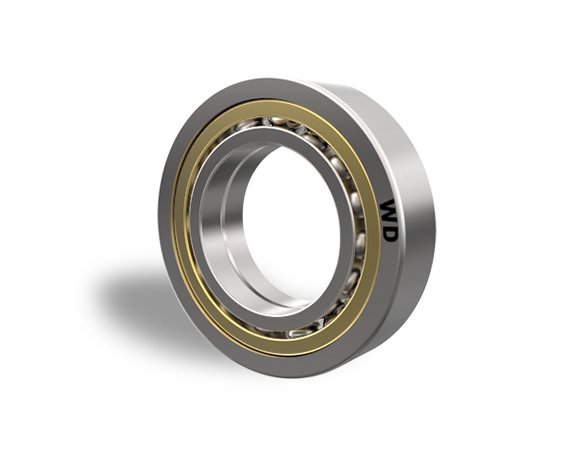

Our Four Point Contact Ball Bearings offer exceptional performance and durability. With a Bore Diameter of 95mm, Outside Diameter of 170mm, and a load rating of 190 kN dynamic and 198 kN static, these bearings ensure reliable operation. Meeting stringent Federal procurement standards and built for precision, these bearings are ideal for industrial applications.
Product Specifications

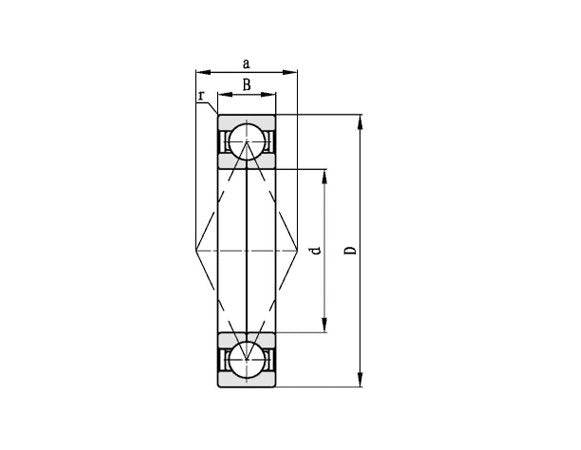

Boundary Dimensions Bore Diameter
95 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
170 mm
Boundary Dimensions Overall Bearing Width
32 mm
Limiting Speed Grease Limiting Speed
3000 rpm
Limiting Speed Oil Limiting Speed
4100 rpm
Load Rating Dynamic Cr Load Rating
190 kN
Load Rating Static Cor Load Rating
198 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
158 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
107 mm
Specifications Approximate Mass
3.37 kg
Specifications Distance Of Working Points A
92.8 mm
