Premium Inch Threaded Inserts Set, 316 SS, Various Sizes
Premium Inch Threaded Inserts Set, 316 SS, Various Sizes
SKU:PRE-05b300
Enhance flow control with our premium Inch Threaded Inserts set, featuring 316 SS construction & multiple sizes for versatile applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Premium Inch Threaded Inserts Set, 316 SS, Various Sizes
$59.99
Quantity: 1
Claim Your Seller Account
Premium Inch Threaded Inserts Set, 316 SS, Various Sizes
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

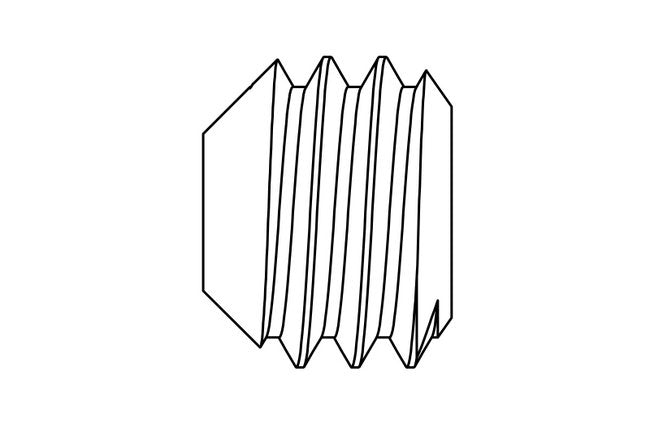

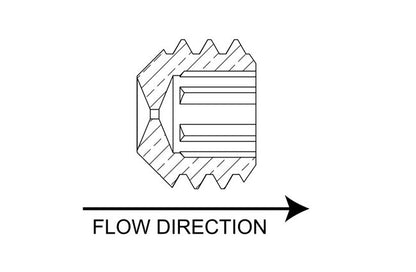

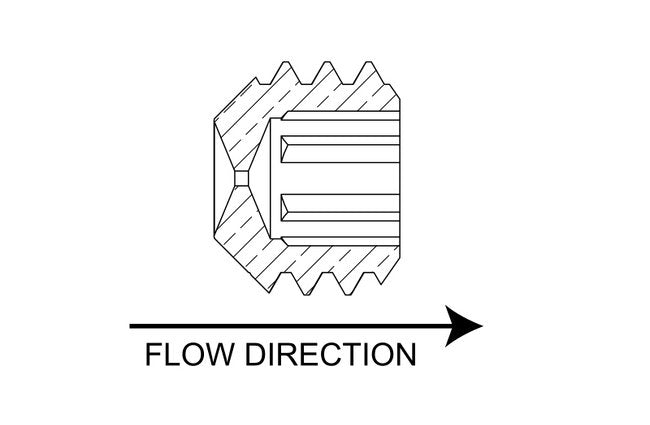

Upgrade your precision flow control with our premium Inch Threaded Inserts set. Crafted from high-quality 316 SS, these orifice inserts offer precise flow rates for liquids or gases. With sizes ranging from 6-32 UNC to 3/8-16 UNC, these threaded inserts ensure reliable performance and compatibility with fittings, manifolds, and custom parts. Experience consistent flow data with our meticulously engineered inserts, catering to diverse industrial and institutional needs.
Product Specifications
Dimensions Orifice Diameter
0.017 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.64 | 5 psig: 3.73 | 10 psig: 4.79 | 15 psig: 6.04 | 20 psig: 7.20 | 25 psig: 8.31 | 30 psig: 9.39 | 40 psig: 11.6 | 50 psig: 13.8 | 60 psig: 16.0 | 70 psig: 18.2 | 80 psig: 20.5 | 90 psig: 22.7 | 100 psig: 25.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.77 | 5 psig (34.5 kPag): 1.76 | 10 psig (69.0 kPag): 2.26 | 15 psig (103.4 kPag): 2.85 | 20 psig (137.9 kPag): 3.40 | 25 psig (172.4 kPag): 3.92 | 30 psig (206.9 kPag): 4.43 | 40 psig (275.8 kPag): 5.47 | 50 psig (344.8 kPag): 6.51 | 60 psig (413.7 kPag): 7.56 | 70 psig (482.7 kPag): 8.61 | 80 psig (551.6 kPag): 9.67 | 90 psig (620.6 kPag): 10.7 | 100 psig (689.5 kPag): 11.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 3.28 | 20 In. Hg.: 3.28 | 30 In. Hg.: 3.28
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.55 | 20 In. Hg. (508 Mm. Hg.): 1.55 | 30 In. Hg. (762 Mm. Hg.): 1.55
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 2.41 | 10 In. Hg.: 2.99
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.14 | 10 In. Hg. (254 Mm. Hg.): 1.41
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0067 | 2 psig: 0.0095 | 3 psig: 0.0116 | 4 psig: 0.0134 | 5 psig: 0.0150 | 6 psig: 0.0164 | 7 psig: 0.0177 | 8 psig: 0.0190 | 9 psig: 0.0201 | 10 psig: 0.0212 | 15 psig: 0.0259 | 20 psig: 0.0300 | 30 psig: 0.0367 | 40 psig: 0.0424 | 50 psig: 0.0474 | 60 psig: 0.0519 | 70 psig: 0.0561 | 80 psig: 0.0599 | 90 psig: 0.0636 | 100 psig: 0.0670
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0254 | 2 psig (13.8 kPag): 0.0359 | 3 psig (20.7 kPag): 0.0439 | 4 psig (27.6 kPag): 0.0507 | 5 psig (34.5 kPag): 0.0567 | 6 psig (41.4 kPag): 0.0567 | 7 psig (48.3 kPag): 0.0671 | 8 psig (55.2 kPag): 0.0717 | 9 psig (62.1 kPag): 0.0761 | 10 psig (69 kPag): 0.0802 | 15 psig (103.4 kPag): 0.0982 | 20 psig (137.9 kPag): 0.1134 | 30 psig (206.9 kPag): 0.1389 | 40 psig (275.8 kPag): 0.1604 | 50 psig (344.8 kPag): 0.1793 | 60 psig (413.7 kPag): 0.1965 | 70 psig (482.7 kPag): 0.2122 | 80 psig (551.6 kPag): 0.2268 | 90 psig (620.6 kPag): 0.2406 | 100 psig (689.5 kPag): 0.2536
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
17
Specifications Screened
None
