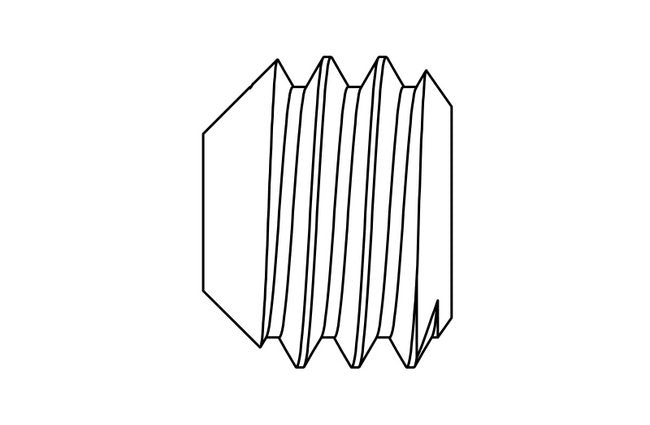

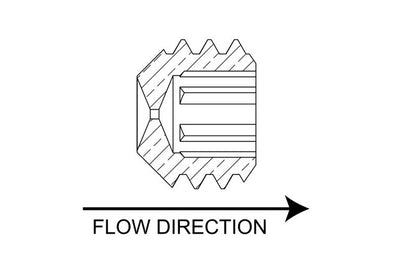

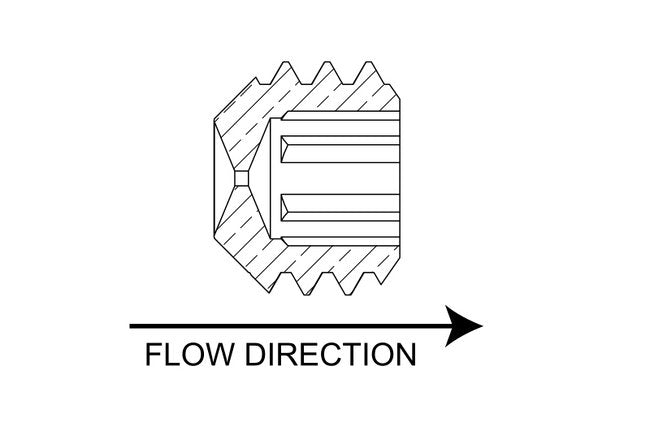

Upgrade your fluid control systems with our premium Inch Threaded Inserts Set. These set screw style threaded orifice inserts ensure precise flow rates of liquids or gases. Crafted from high-quality 316 SS for durability, with orifice diameter of 0.039 in and various thread sizes available. Experience efficient air and water flows with tested performance data included. Ideal for fittings, manifolds, or custom parts, meeting strict industry standards for reliability and accuracy.
Product Specifications
Dimensions Orifice Diameter
0.039 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.25 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.45 | 5 psig: 20.6 | 10 psig: 28.8 | 15 psig: 35.4 | 20 psig: 41.5 | 25 psig: 47.9 | 30 psig: 54.2 | 40 psig: 67.0 | 50 psig: 79.7 | 60 psig: 92.8 | 70 psig: 106 | 80 psig: 119 | 90 psig: 132 | 100 psig: 146
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.46 | 5 psig (34.5 kPag): 9.7 | 10 psig (69.0 kPag): 13.6 | 15 psig (103.4 kPag): 16.7 | 20 psig (137.9 kPag): 19.6 | 25 psig (172.4 kPag): 22.6 | 30 psig (206.9 kPag): 25.6 | 40 psig (275.8 kPag): 31.6 | 50 psig (344.8 kPag): 37.6 | 60 psig (413.7 kPag): 43.8 | 70 psig (482.7 kPag): 50 | 80 psig (551.6 kPag): 56.2 | 90 psig (620.6 kPag): 62.4 | 100 psig (689.5 kPag): 68.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 17.4 | 20 In. Hg.: 17.4 | 30 In. Hg.: 17.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.22 | 20 In. Hg. (508 Mm. Hg.): 8.22 | 30 In. Hg. (762 Mm. Hg.): 8.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 13.3 | 10 In. Hg.: 16.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.29 | 10 In. Hg. (254 Mm. Hg.): 7.85
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.033 | 2 psig: 0.047 | 3 psig: 0.057 | 4 psig: 0.066 | 5 psig: 0.074 | 6 psig: 0.081 | 7 psig: 0.087 | 8 psig: 0.093 | 9 psig: 0.099 | 10 psig: 0.104 | 15 psig: 0.128 | 20 psig: 0.148 | 30 psig: 0.181 | 40 psig: 0.209 | 50 psig: 0.233 | 60 psig: 0.256 | 70 psig: 0.276 | 80 psig: 0.295 | 90 psig: 0.313 | 100 psig: 0.330
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.125 | 2 psig (13.8 kPag): 0.177 | 3 psig (20.7 kPag): 0.216 | 4 psig (27.6 kPag): 0.250 | 5 psig (34.5 kPag): 0.279 | 6 psig (41.4 kPag): 0.306 | 7 psig (48.3 kPag): 0.331 | 8 psig (55.2 kPag): 0.353 | 9 psig (62.1 kPag): 0.375 | 10 psig (69 kPag): 0.395 | 15 psig (103.4 kPag): 0.484 | 20 psig (137.9 kPag): 0.559 | 30 psig (206.9 kPag): 0.684 | 40 psig (275.8 kPag): 0.79 | 50 psig (344.8 kPag): 0.883 | 60 psig (413.7 kPag): 0.968 | 70 psig (482.7 kPag): 1.045 | 80 psig (551.6 kPag): 1.117 | 90 psig (620.6 kPag): 1.185 | 100 psig (689.5 kPag): 1.249
Specifications Connection A
5/16"-18 UNC Threaded Insert
Specifications Material
316 SS
Specifications Nominal Orifice Size
39
Specifications Screened
None
