Premium Inch Threaded Inserts with Nose Seals Set, Assorted Sizes, 303 SS Material
Premium Inch Threaded Inserts with Nose Seals Set, Assorted Sizes, 303 SS Material
SKU:PRE-e0d4df
Enhance flow control precision with our premium Inch Threaded Inserts and Nose Seals set.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Premium Inch Threaded Inserts with Nose Seals Set, Assorted Sizes, 303 SS Material
$89.99
Quantity: 1
Claim Your Seller Account
Premium Inch Threaded Inserts with Nose Seals Set, Assorted Sizes, 303 SS Material
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

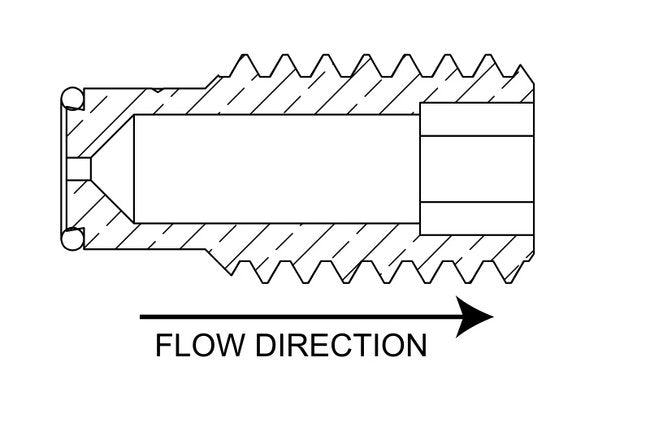

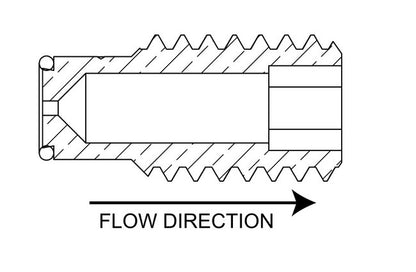

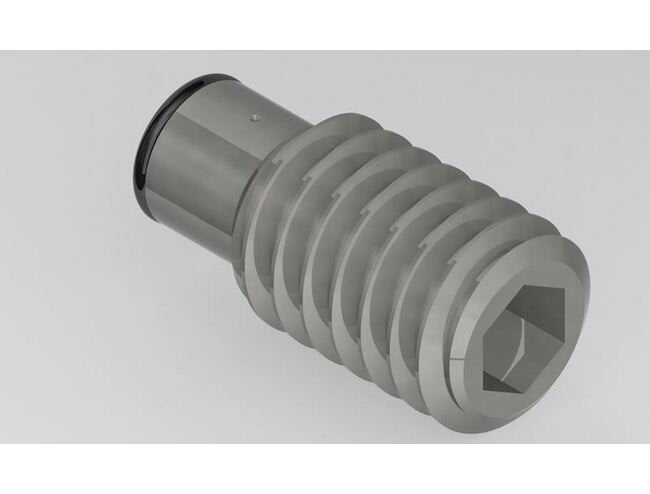

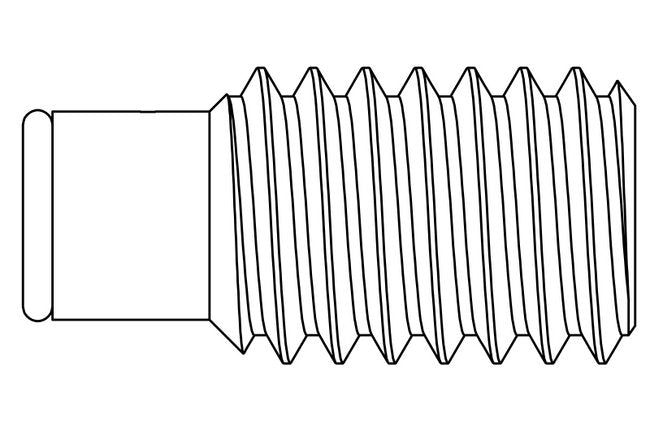

Upgrade your precision flow control with our premium Inch Threaded Inserts and Nose Seals set. Made of durable 303 SS material with Viton seals, these orifices ensure a tight seal against flat surfaces. Perfect for various applications in fittings, manifolds, and custom parts, providing accurate flow rate control for liquids and gases.
Product Specifications
Dimensions Orifice Diameter
0.055 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.640 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 19.90 | 5 psig: 43.0 | 10 psig: 57.4 | 15 psig: 69.7 | 20 psig: 82.0 | 25 psig: 94.5 | 30 psig: 107 | 40 psig: 132 | 50 psig: 157 | 60 psig: 182 | 70 psig: 207 | 80 psig: 231 | 90 psig: 256 | 100 psig: 282
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 9.4 | 5 psig (34.5 kPag): 20.3 | 10 psig (69.0 kPag): 27.1 | 15 psig (103.4 kPag): 32.9 | 20 psig (137.9 kPag): 38.7 | 25 psig (172.4 kPag): 44.6 | 30 psig (206.9 kPag): 50.4 | 40 psig (275.8 kPag): 62.2 | 50 psig (344.8 kPag): 74 | 60 psig (413.7 kPag): 85.8 | 70 psig (482.7 kPag): 97.6 | 80 psig (551.6 kPag): 109 | 90 psig (620.6 kPag): 121 | 100 psig (689.5 kPag): 133
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 33.7 | 20 In. Hg.: 33.7 | 30 In. Hg.: 33.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 15.9 | 20 In. Hg. (508 Mm. Hg.): 15.9 | 30 In. Hg. (762 Mm. Hg.): 15.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 26.4 | 10 In. Hg.: 32.7
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 12.4 | 10 In. Hg. (254 Mm. Hg.): 15.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.068 | 2 psig: 0.096 | 3 psig: 0.118 | 4 psig: 0.136 | 5 psig: 0.152 | 6 psig: 0.167 | 7 psig: 0.180 | 8 psig: 0.192 | 9 psig: 0.204 | 10 psig: 0.215 | 15 psig: 0.263 | 20 psig: 0.304 | 30 psig: 0.372 | 40 psig: 0.430 | 50 psig: 0.481 | 60 psig: 0.527 | 70 psig: 0.569 | 80 psig: 0.608 | 90 psig: 0.645 | 100 psig: 0.680
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.257 | 2 psig (13.8 kPag): 0.364 | 3 psig (20.7 kPag): 0.446 | 4 psig (27.6 kPag): 0.515 | 5 psig (34.5 kPag): 0.576 | 6 psig (41.4 kPag): 0.631 | 7 psig (48.3 kPag): 0.681 | 8 psig (55.2 kPag): 0.728 | 9 psig (62.1 kPag): 0.772 | 10 psig (69 kPag): 0.814 | 15 psig (103.4 kPag): 0.997 | 20 psig (137.9 kPag): 1.151 | 30 psig (206.9 kPag): 1.41 | 40 psig (275.8 kPag): 1.628 | 50 psig (344.8 kPag): 1.820 | 60 psig (413.7 kPag): 1.994 | 70 psig (482.7 kPag): 2.154 | 80 psig (551.6 kPag): 2.302 | 90 psig (620.6 kPag): 2.442 | 100 psig (689.5 kPag): 2.574
Specifications Connection A
5/16"-18 UNC Threaded Insert O-ring seal
Specifications Cv
0.068
Specifications Material
303 SS
Specifications Maximum Opening Diameter
0.125 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
55
Specifications Screened
None
Specifications Seal Material
Viton
