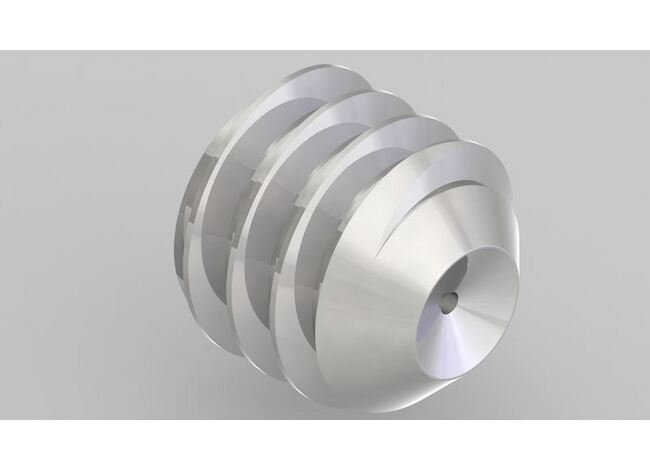

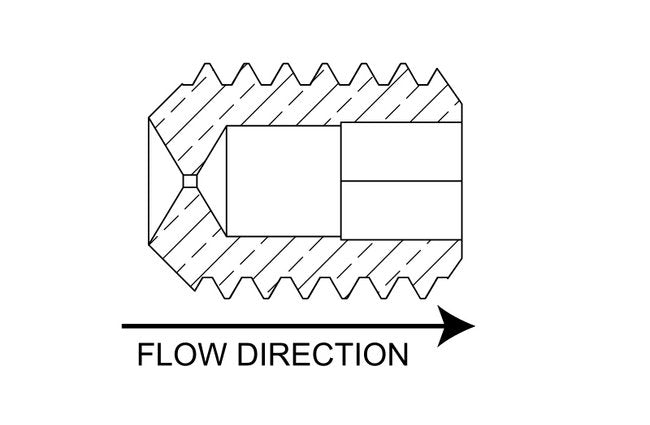

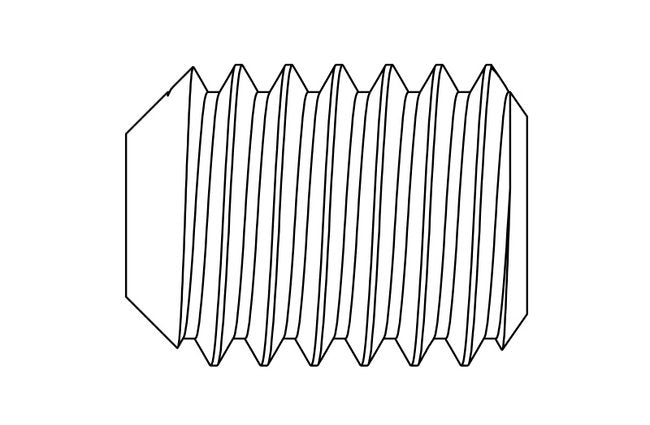

Upgrade your fluid control systems with our premium Inch Threaded Orifice Inserts set. Precision-engineered with brass materials, these inserts ensure reliable flow rates for liquids or gases. With standard orifice sizes ranging from 0.004" to 0.063" and a variety of thread sizes including 3/8-16 UNC, these threaded inserts are versatile and durable. Experience optimal air and water flow rates backed by industry-leading performance data, making them ideal for fittings, manifolds, or custom parts. Trust in the quality and precision of these inserts to enhance your operations.
Product Specifications
Dimensions Orifice Diameter
0.015 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.30 | 5 psig: 2.99 | 10 psig: 4.13 | 15 psig: 5.17 | 20 psig: 6.08 | 25 psig: 6.95 | 30 psig: 7.82 | 40 psig: 9.56 | 50 psig: 11.3 | 60 psig: 13.0 | 70 psig: 14.7 | 80 psig: 16.5 | 90 psig: 18.3 | 100 psig: 20.0
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.61 | 5 psig (34.5 kPag): 1.41 | 10 psig (69.0 kPag): 1.95 | 15 psig (103.4 kPag): 2.44 | 20 psig (137.9 kPag): 2.87 | 25 psig (172.4 kPag): 3.28 | 30 psig (206.9 kPag): 3.69 | 40 psig (275.8 kPag): 4.51 | 50 psig (344.8 kPag): 5.31 | 60 psig (413.7 kPag): 6.13 | 70 psig (482.7 kPag): 6.96 | 80 psig (551.6 kPag): 7.79 | 90 psig (620.6 kPag): 8.62 | 100 psig (689.5 kPag): 9.46
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.59 | 20 In. Hg.: 2.59 | 30 In. Hg.: 2.59
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.22 | 20 In. Hg. (508 Mm. Hg.): 1.22 | 30 In. Hg. (762 Mm. Hg.): 1.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.9 | 10 In. Hg.: 2.37
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.899 | 10 In. Hg. (254 Mm. Hg.): 1.12
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0050 | 2 psig: 0.0071 | 3 psig: 0.0087 | 4 psig: 0.0100 | 5 psig: 0.0112 | 6 psig: 0.0122 | 7 psig: 0.0132 | 8 psig: 0.0141 | 9 psig: 0.0150 | 10 psig: 0.0158 | 15 psig: 0.0194 | 20 psig: 0.0224 | 30 psig: 0.0274 | 40 psig: 0.0316 | 50 psig: 0.0354 | 60 psig: 0.0387 | 70 psig: 0.0418 | 80 psig: 0.0447 | 90 psig: 0.0474 | 100 psig: 0.0500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0189 | 2 psig (13.8 kPag): 0.0268 | 3 psig (20.7 kPag): 0.0328 | 4 psig (27.6 kPag): 0.0379 | 5 psig (34.5 kPag): 0.0423 | 6 psig (41.4 kPag): 0.0423 | 7 psig (48.3 kPag): 0.0501 | 8 psig (55.2 kPag): 0.0535 | 9 psig (62.1 kPag): 0.0568 | 10 psig (69 kPag): 0.0599 | 15 psig (103.4 kPag): 0.0733 | 20 psig (137.9 kPag): 0.0846 | 30 psig (206.9 kPag): 0.1037 | 40 psig (275.8 kPag): 0.1197 | 50 psig (344.8 kPag): 0.1338 | 60 psig (413.7 kPag): 0.1466 | 70 psig (482.7 kPag): 0.1584 | 80 psig (551.6 kPag): 0.1693 | 90 psig (620.6 kPag): 0.1796 | 100 psig (689.5 kPag): 0.1893
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
15
Specifications Screened
None
