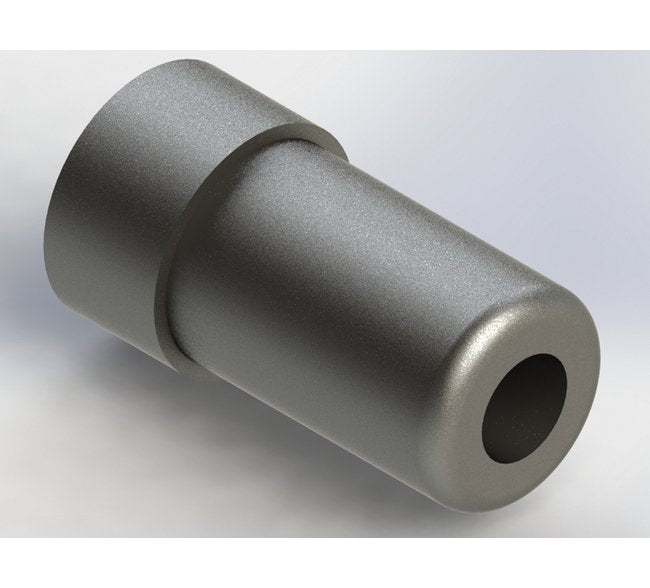

Premium Precision Metal Orifice Inserts - 0.128" OD
Premium Precision Metal Orifice Inserts - 0.128" OD
SKU:PRE-724eb5
Enhance flow control precision with our top-notch Metal Orifice Inserts - ideal for fittings, manifolds & custom parts.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Premium Precision Metal Orifice Inserts - 0.128" OD
$29.99
Quantity: 1
Claim Your Seller Account
Premium Precision Metal Orifice Inserts - 0.128" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with our premium Precision Metal Orifice Inserts. Crafted from high-grade 303 SS material, these press-fit inserts ensure precise flow regulation in fittings, manifolds, and custom parts. With an orifice diameter accuracy of ±0.0005", and a maximum operating pressure of 4000 psig, our inserts guarantee exceptional performance and durability. Experience superior flow rate control for liquids or gases, meticulously machined for seamless integration into your assemblies.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.02 in | 0.51 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.22 | 5 psig: 5.23 | 10 psig: 6.70 | 15 psig: 8.50 | 20 psig: 10.3 | 25 psig: 11.8 | 30 psig: 13.4 | 40 psig: 16.5 | 50 psig: 19.6 | 60 psig: 22.7 | 70 psig: 25.9 | 80 psig: 29.0 | 90 psig: 32.2 | 100 psig: 35.2
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.05 | 5 psig (34.5 kPag): 2.47 | 10 psig (69.0 kPag): 3.16 | 15 psig (103.4 kPag): 4.01 | 20 psig (137.9 kPag): 4.84 | 25 psig (172.4 kPag): 5.59 | 30 psig (206.9 kPag): 6.33 | 40 psig (275.8 kPag): 7.81 | 50 psig (344.8 kPag): 9.26 | 60 psig (413.7 kPag): 10.7 | 70 psig (482.7 kPag): 12.2 | 80 psig (551.6 kPag): 13.7 | 90 psig (620.6 kPag): 15.2 | 100 psig (689.5 kPag): 16.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 4.64 | 20 In. Hg.: 4.64 | 30 In. Hg.: 4.64
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.19 | 20 In. Hg. (508 Mm. Hg.): 2.19 | 30 In. Hg. (762 Mm. Hg.): 2.19
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 3.28 | 10 In. Hg.: 4.15
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.55 | 10 In. Hg. (254 Mm. Hg.): 1.96
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.009 | 2 psig: 0.012 | 3 psig: 0.015 | 4 psig: 0.018 | 5 psig: 0.020 | 6 psig: 0.022 | 7 psig: 0.023 | 8 psig: 0.025 | 9 psig: 0.026 | 10 psig: 0.028 | 15 psig: 0.034 | 20 psig: 0.039 | 30 psig: 0.048 | 40 psig: 0.056 | 50 psig: 0.062 | 60 psig: 0.068 | 70 psig: 0.074 | 80 psig: 0.079 | 90 psig: 0.083 | 100 psig: 0.088
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.033 | 2 psig (13.8 kPag): 0.047 | 3 psig (20.7 kPag): 0.058 | 4 psig (27.6 kPag): 0.067 | 5 psig (34.5 kPag): 0.074 | 6 psig (41.4 kPag): 0.074 | 7 psig (48.3 kPag): 0.088 | 8 psig (55.2 kPag): 0.094 | 9 psig (62.1 kPag): 0.100 | 10 psig (69 kPag): 0.105 | 15 psig (103.4 kPag): 0.129 | 20 psig (137.9 kPag): 0.149 | 30 psig (206.9 kPag): 0.182 | 40 psig (275.8 kPag): 0.211 | 50 psig (344.8 kPag): 0.236 | 60 psig (413.7 kPag): 0.258 | 70 psig (482.7 kPag): 0.279 | 80 psig (551.6 kPag): 0.298 | 90 psig (620.6 kPag): 0.316 | 100 psig (689.5 kPag): 0.333
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.0088
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
20
Specifications Screened
None
