Premium Series 58 Teflon Lined Valves DIN PN10
Premium Series 58 Teflon Lined Valves DIN PN10
SKU:VAL-df5173
Reliable Series 58 Teflon Lined Valves for industrial use. Sizes 2" to 24". Durable materials.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Premium Series 58 Teflon Lined Valves DIN PN10
$349.99
Quantity: 1
Claim Your Seller Account
Premium Series 58 Teflon Lined Valves DIN PN10
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Series 58 Teflon Lined Valves DIN PN10 offer exceptional durability and versatility for a wide range of applications. Compliant with ISO 5752 standards, these valves feature a robust construction with body options in Bronze, Carbon Steel, Cast Iron, Ductile Iron, and Stainless Steel. The Teflon lined design ensures superior performance and longevity. With a size range from 2" to 24" and materials like Stainless Steel disc and stem, these valves provide reliable operation even in demanding environments.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

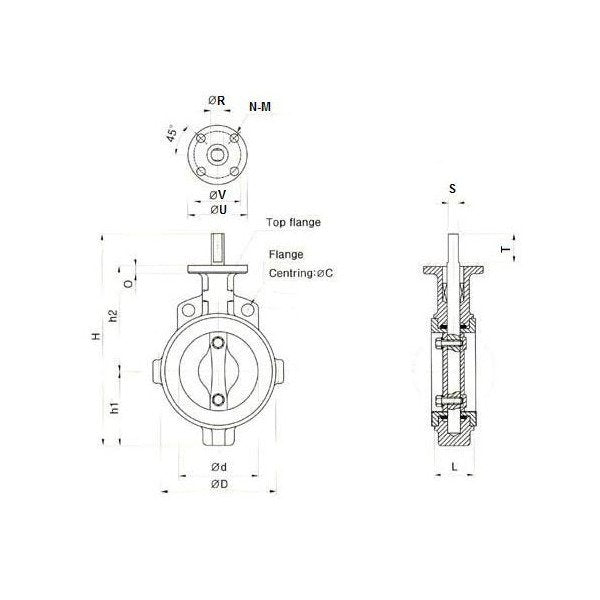

Specifications Bolt Diameter
18 mm
Specifications C
160 mm
Specifications D
128 mm
Specifications H
263 mm
Specifications H1
83 mm
Specifications H2
150 mm
Specifications L
46 mm
Specifications Number Of Bolts
8
Specifications O
11 mm
Specifications Pressure
PN 10
Specifications Size
080 - 3"
Specifications Standard
DIN
Specifications Stem R
14 mm
Specifications Stem S
10 mm
Specifications Stem T
38 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
4.9 kg
