Premium Silicone Coated FEP Wire
Premium Silicone Coated FEP Wire
SKU:HIG-6c0502
High-performance Silicone Coated FEP Wire for enhanced durability and reliability in high voltage applications. Operating temperature: -55 to 125 °C.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Premium Silicone Coated FEP Wire
$29.99
Quantity: 1
Claim Your Seller Account
Premium Silicone Coated FEP Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

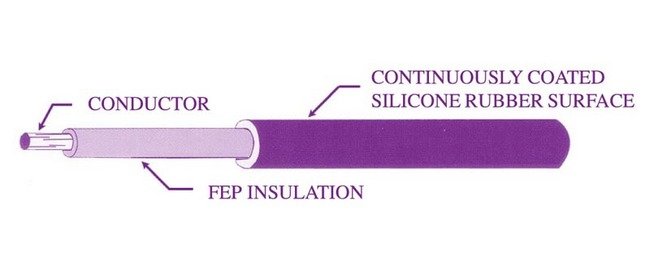

Experience superior performance and reliability with our Premium Silicone Coated FEP Wire. This high-quality wire features a uniform silicone rubber coating that enhances potting characteristics, ensuring a strong dielectric bond. With a durable construction and silver-plated copper conductor, it provides excellent voltage resistance and reliability in temperatures ranging from -55 to 125 °C. Ideal for high voltage applications, this standard part meets stringent industry standards for safety and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-8111
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
No
Cable Wire Properties Nomex Jacketed Etched Part Number
178-8118
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Gauge
24 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/36
Specifications Default Color
Natural
Specifications Diameter Over Silicon Coating
0.058 in | 1.473 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.058 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
