Enhance your industrial clutch and brake systems with our Premium Single Flange CB Elements from the 4CB200 series. With a high torque rating of 1000 lb·in, maximum speed of 2000 rpm, and precise dimensions for compatibility, these elements ensure reliable performance. The friction area of 23 in², coupled with multiple mounting holes and friction shoes, guarantees efficient operation. Designed to meet strict procurement standards, this product is a top choice for government and institutional buyers seeking durability and precision.

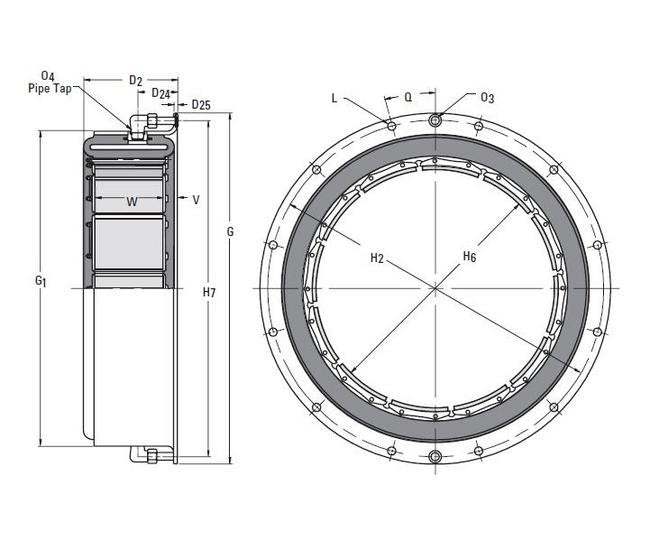

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/8-27
Specifications Air Tube Cavity
10 in³ | 0.17 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.25 in | 6 mm
Specifications Centrifugal Loss Constant Cs
0.12 E-06 bar/rpm2 | 1.7 E-06 psi/rpm2
Specifications Dimension D2
2.63 in | 67 mm
Specifications Dimension D24
1.38 in | 35 mm
Specifications Dimension D25
0.09 in | 2 mm
Specifications Dimension G
7.248 in | 184.1 mm
Specifications Dimension G1
5.81 in | 148 mm
Specifications Dimension H2
6.688 in | 169.9 mm
Specifications Dimension H6
4.13 in | 105 mm
Specifications Dimension H7
6.69 in | 170 mm
Specifications Dimension O3
0.19 in | 5 mm
Specifications Dimension V
0.38 in | 10 mm
Specifications Friction Area
23 in² | 148.4 cm²
Specifications Friction Shoe Width W
2.00 in | 51 mm
Specifications Inertia
0.2 lb·ft² | 0.01 kg·m²
Specifications Maximum Speed
2000 rpm
Specifications Minimum Drum Diameter
3.90 in | 99 mm
Specifications New Friction Lining Thickness
0.12 in | 3 mm
Specifications Number Of Friction Shoes
6
Specifications Number Of Mounting Holes
8
Specifications Size
4CB200
Specifications Torque Rating 75 Psi55 Bar
1000 lb·in | 113 Nm
Specifications Weight
2.5 lb | 1.1 kg
Specifications Worn Friction Lining Thickness
0.03 in | 1 mm
