Premium SM2V Series Horizontal Instrumentation Manifold Valve
Premium SM2V Series Horizontal Instrumentation Manifold Valve
SKU:SM2-91f406
Optimized for precision and durability, the SM2V Series Valve ensures reliability with a 6000 psig pressure rating and 1200°F temperature capacity.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
Premium SM2V Series Horizontal Instrumentation Manifold Valve
$359.99
Quantity: 1
Claim Your Seller Account
Premium SM2V Series Horizontal Instrumentation Manifold Valve
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SM2V Series Direct Mounting Horizontal Single Flange Style Instrumentation Manifold Valve is designed for precision and durability. With a pressure rating of 6000 psig, optional Grafoil packing for temperatures up to 1200°F, and maximum leak rate of 0.1 cm³/min, this valve ensures reliable performance. Constructed with 316 stainless steel and PTFE packing, each valve undergoes rigorous nitrogen gas testing. Perfect for institutional applications requiring high-quality instrumentation.
Product Specifications
Features Features

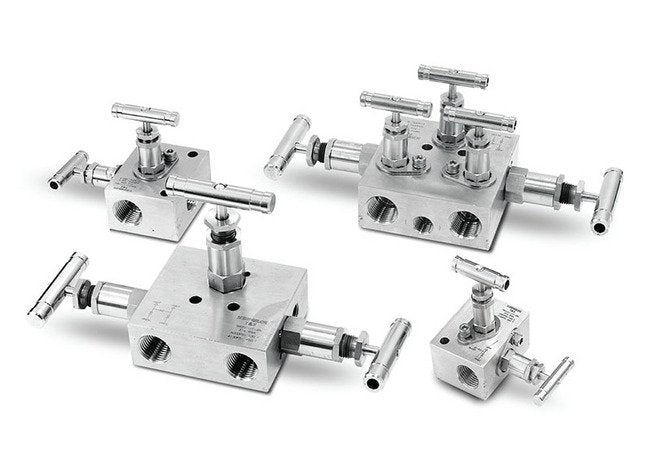

2-,3-,and 5-valves Instrument manifolds valves.All 316 stainless steel construction with PTFE packingEach valve of every manifold is factory tested with nitrogen gas to a maximum allowable leak rate of 0.1scc/min.
Note Note

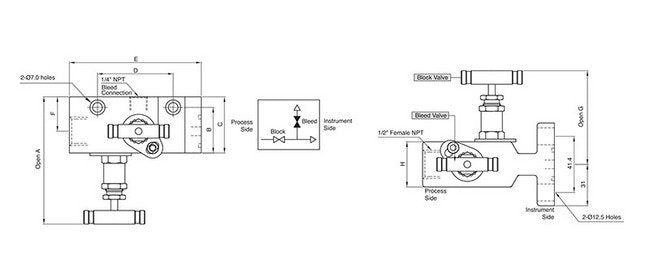

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Bleed End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Instrument End Connections
Flange
Technical Specs Maximum Allowable Leak Rate
0.1 cm³/min
Technical Specs Pressure Rating At 100 Degree Fahrenheit F 37 De
6000 psig | 413 bar
Technical Specs Process End Connections
1/2 in. Female National Pipe Thread (FNPT)
Technical Specs Temperature With Optional Grafoil Packing
1200 ºF | 648 ºC
Weight Dimension Dimension A
93.8 mm
Weight Dimension Dimension B
33.6 mm
Weight Dimension Dimension C
41.4 mm
Weight Dimension Dimension D
47.8 mm
Weight Dimension Dimension E
97.0 mm
Weight Dimension Dimension F
25.4 mm
Weight Dimension Dimension G
69.0 mm
Weight Dimension Dimension H
31.8 mm
