Premium Square Negative Turning Blank with Hole, 0.135 / 0.143 in Thickness
Premium Square Negative Turning Blank with Hole, 0.135 / 0.143 in Thickness
SKU:TUR-194479
Enhance turning precision with our Premium Square Negative Blank, thickness 0.135 / 0.143 in. Crafted with Ultra-Met® for superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Premium Square Negative Turning Blank with Hole, 0.135 / 0.143 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Premium Square Negative Turning Blank with Hole, 0.135 / 0.143 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Square Negative Turning Blank with Hole offers exceptional quality and precision for turning applications. Crafted with Ultra-Met® materials, this turning blank features a thickness of 0.135 / 0.143 inches, an inscribed circle of 0.264/0.270 inches, and a 90° angle for optimal performance. The incorporated hole with dimensions of 0.102 / 0.108 inches enhances versatility and ease of use. Available in custom grades upon request, this blank is engineered to meet the highest standards of durability and efficiency in turning processes.

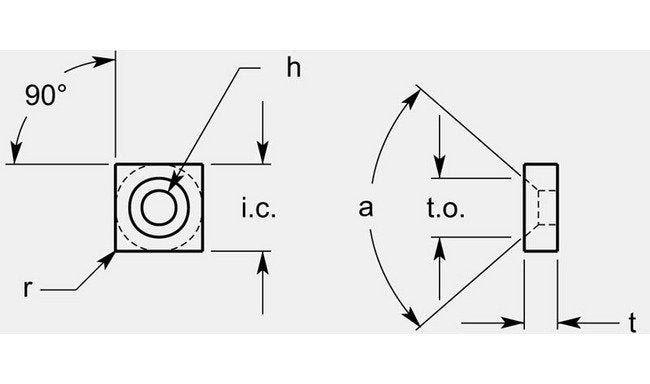

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.102 / 0.108 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.185 / 0.191 in
Grade Availability Grade Availability
Available on Request
