Premium Square Positive Chipbreaker with Hole and Countersink

Name: Premium Square Positive Chipbreaker with Hole and Countersink
Brand: Ultra-Met
SKU: MIL-a979e2
Price: 49.99 USD
Availability: OutOfStock

SKU:MIL-a979e2

Enhance milling precision with our Square Chipbreaker. Thickness: 0.200/0.206'. Hole: 0.212/0.218'. Grade options available.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your milling operations with our premium Square Positive Chipbreaker with Hole and Countersink. Precision-engineered with a thickness of 0.200 / 0.206 inches, an Inscribed Circle of 0.517 / 0.523 inches, and an Angle of 45 degrees, this chipbreaker ensures optimal performance and accuracy. The integrated hole and countersink, measuring 0.212 / 0.218 inches and 0.275 / 0.281 inches respectively, enhance versatility and efficiency in cutting processes. Grade availability tailored to your specific requirements is available upon request, making this chipbreaker a reliable choice for demanding machining applications.

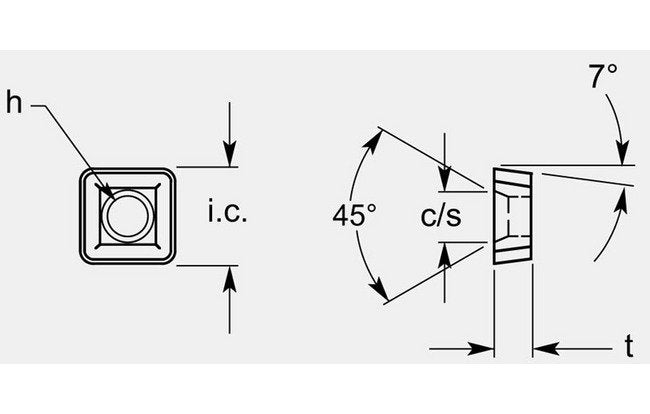

Product Specifications

Dimensional Specification Angle A

45 Âº

Dimensional Specification Cs

0.275 / 0.281 in

Dimensional Specification Hole

0.212 / 0.218 in

Dimensional Specification Inscribed Circle Ic

0.517/0.523 in

Dimensional Specification Thickness T

0.200 / 0.206 in

Grade Availability Grade Availability

Available on Request
