Premium Square Positive Chipbreaker with Hole and Countersink, 0.200 / 0.206 in
Premium Square Positive Chipbreaker with Hole and Countersink, 0.200 / 0.206 in
SKU:MIL-fae448
High-precision 0.200 / 0.206 in Square Chipbreaker for reliable milling results
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Premium Square Positive Chipbreaker with Hole and Countersink, 0.200 / 0.206 in
$49.99
Quantity: 1
Claim Your Seller Account
Premium Square Positive Chipbreaker with Hole and Countersink, 0.200 / 0.206 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Square Positive Chipbreaker with Hole and Countersink offers exceptional precision with a thickness of 0.200 / 0.206 in. Designed for milling applications, this chipbreaker features an Inscribed Circle of 0.514/0.520 in, an Angle of 82°, and hole dimensions of 0.198 / 0.202 in. Its C/S measures 0.289 / 0.295 in. Available in Grade options upon request, this chipbreaker ensures high-performance and reliability in machining processes, meeting stringent industry standards.

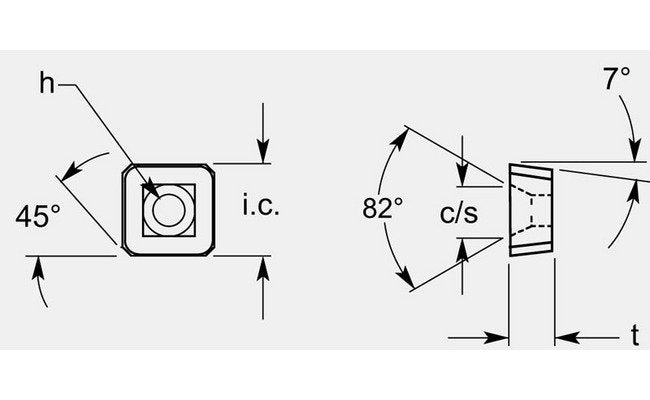

Product Specifications
Dimensional Specification Angle A
82 º
Dimensional Specification Cs
0.289 / 0.295 in
Dimensional Specification Hole
0.198 / 0.202 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.200 / 0.206 in
Grade Availability Grade Availability
Available on Request
