Premium Square Positive Chipbreaker with Hole and Countersink, 0.240-0.246 in
Premium Square Positive Chipbreaker with Hole and Countersink, 0.240-0.246 in
SKU:MIL-dcc275
Optimize milling operations with our precise Square Chipbreaker, featuring hole and countersink.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Premium Square Positive Chipbreaker with Hole and Countersink, 0.240-0.246 in
$49.99
Quantity: 1
Claim Your Seller Account
Premium Square Positive Chipbreaker with Hole and Countersink, 0.240-0.246 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

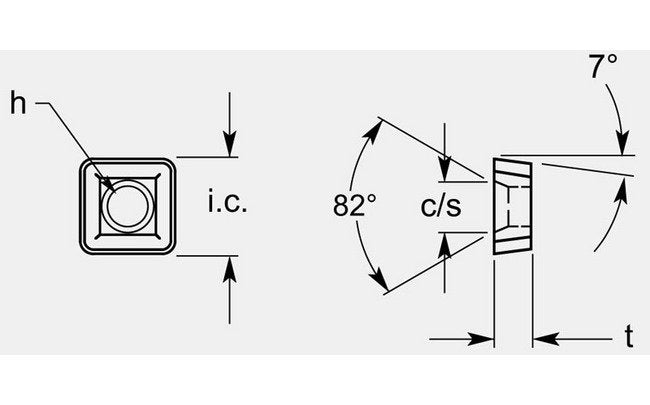

Enhance your milling precision with our Premium Square Positive Chipbreaker featuring a precise thickness range of 0.240-0.246 inches, an inscribed circle of 0.514-0.520 inches, and an optimal angle of 82 degrees. The integrated hole and countersink measuring 0.198-0.202 inches and 0.289-0.295 inches respectively ensure efficient chip evacuation. This product is designed for high-performance milling applications and is available in various grades upon request, meeting the stringent requirements of institutional buyers while delivering exceptional results.
Product Specifications
Dimensional Specification Angle A
82 º
Dimensional Specification Cs
0.289 / 0.295 in
Dimensional Specification Hole
0.198 / 0.202 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.240 / 0.246 in
Grade Availability Grade Availability
Available on Request
