Premium Utility Diamond Negative with Hole, Thickness 0.198 / 0.206 in
Premium Utility Diamond Negative with Hole, Thickness 0.198 / 0.206 in
SKU:TUR-6663db
Experience precision machining with our Premium Utility Diamond Negative with Hole. Versatile, durable, and compliant with institutional standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Premium Utility Diamond Negative with Hole, Thickness 0.198 / 0.206 in
$49.99
Quantity: 1
Claim Your Seller Account
Premium Utility Diamond Negative with Hole, Thickness 0.198 / 0.206 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Premium Utility Diamond Negative with Hole is a versatile turning blank designed for precision machining applications. With a unique thickness range of 0.198 to 0.206 inches, an inscribed circle of 0.373 to 0.377 inches, and a radius of 1/64 inch, this insert offers exceptional durability and performance. The included hole, measuring 0.147 to 0.153 inches, adds to its versatility. Available in various grades upon request, this product is engineered to meet the rigorous demands of institutional and government procurement standards.

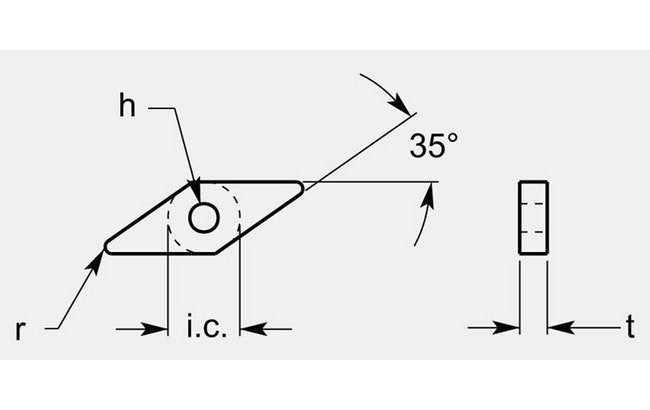

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.147 / 0.153 in
Dimensional Specification Inscribed Circle Ic
0.373/0.377 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Grade Availability Grade Availability
Available on Request
