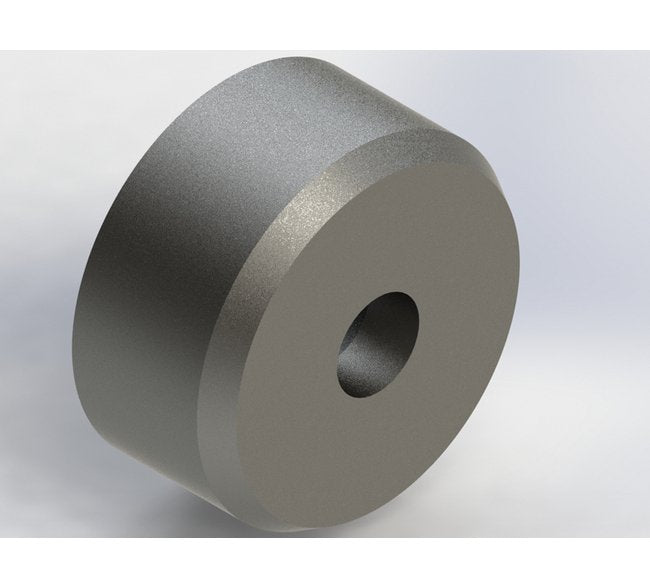

Press-Fit Metal Orifice Inserts - 0.124" OD
Press-Fit Metal Orifice Inserts - 0.124" OD
SKU:PRE-779c5d
Enhance fluid control with precision metal orifice inserts for fittings and manifolds. Ensure accurate flow at high pressures.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Metal Orifice Inserts - 0.124" OD
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Metal Orifice Inserts - 0.124" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your precision fluid control systems with our Press-Fit Metal Orifice Inserts. Crafted from high-grade 303 SS, these inserts guarantee accurate flow control with an orifice diameter accuracy of ±0.0005 in. Ideal for fittings, manifolds, and custom assemblies, they offer a CV of 0.028 and operate at pressures up to 4000 psig. Meet stringent procurement standards effortlessly.
Product Specifications
Application 0

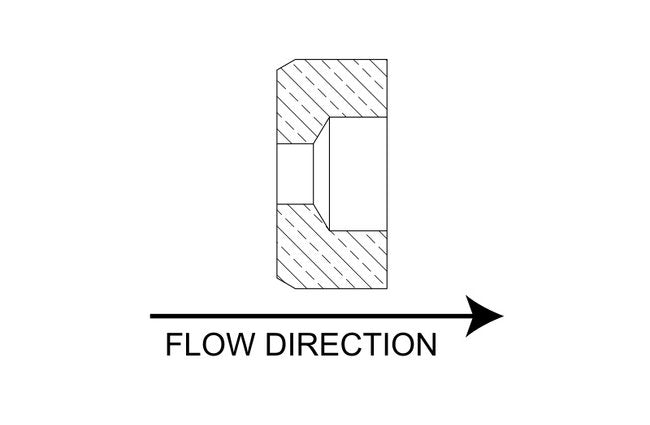

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.035 in | 0.89 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 7.37 | 5 psig: 16.3 | 10 psig: 22.5 | 15 psig: 27.8 | 20 psig: 32.4 | 25 psig: 37.5 | 30 psig: 42.4 | 40 psig: 52.5 | 50 psig: 62.5 | 60 psig: 72.7 | 70 psig: 83.1 | 80 psig: 93.0 | 90 psig: 106 | 100 psig: 114
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.48 | 5 psig (34.5 kPag): 7.67 | 10 psig (69.0 kPag): 10.6 | 15 psig (103.4 kPag): 13.1 | 20 psig (137.9 kPag): 15.3 | 25 psig (172.4 kPag): 17.7 | 30 psig (206.9 kPag): 20 | 40 psig (275.8 kPag): 24.8 | 50 psig (344.8 kPag): 29.5 | 60 psig (413.7 kPag): 34.3 | 70 psig (482.7 kPag): 39.2 | 80 psig (551.6 kPag): 44 | 90 psig (620.6 kPag): 50 | 100 psig (689.5 kPag): 53.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 13.8 | 20 In. Hg.: 13.8 | 30 In. Hg.: 13.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 6.5 | 20 In. Hg. (508 Mm. Hg.): 6.5 | 30 In. Hg. (762 Mm. Hg.): 6.5
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 10.4 | 10 In. Hg.: 13.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.92 | 10 In. Hg. (254 Mm. Hg.): 6.18
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.028 | 2 psig: 0.040 | 3 psig: 0.048 | 4 psig: 0.056 | 5 psig: 0.063 | 6 psig: 0.069 | 7 psig: 0.074 | 8 psig: 0.079 | 9 psig: 0.084 | 10 psig: 0.089 | 15 psig: 0.108 | 20 psig: 0.125 | 30 psig: 0.153 | 40 psig: 0.177 | 50 psig: 0.198 | 60 psig: 0.217 | 70 psig: 0.234 | 80 psig: 0.250 | 90 psig: 0.266 | 100 psig: 0.280
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.106 | 2 psig (13.8 kPag): 0.150 | 3 psig (20.7 kPag): 0.184 | 4 psig (27.6 kPag): 0.212 | 5 psig (34.5 kPag): 0.237 | 6 psig (41.4 kPag): 0.260 | 7 psig (48.3 kPag): 0.280 | 8 psig (55.2 kPag): 0.300 | 9 psig (62.1 kPag): 0.318 | 10 psig (69 kPag): 0.335 | 15 psig (103.4 kPag): 0.411 | 20 psig (137.9 kPag): 0.474 | 30 psig (206.9 kPag): 0.581 | 40 psig (275.8 kPag): 0.67 | 50 psig (344.8 kPag): 0.749 | 60 psig (413.7 kPag): 0.821 | 70 psig (482.7 kPag): 0.887 | 80 psig (551.6 kPag): 0.948 | 90 psig (620.6 kPag): 1.006 | 100 psig (689.5 kPag): 1.060
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.028
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
35
Specifications Screened
None
