Press-Fit Metal Orifice Inserts - 0.249" OD
Press-Fit Metal Orifice Inserts - 0.249" OD
SKU:PRE-4e1e80
Enhance flow control with our high-precision Press-Fit Metal Orifice Inserts, ideal for accurate flow rate regulation in industrial systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Metal Orifice Inserts - 0.249" OD
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Metal Orifice Inserts - 0.249" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

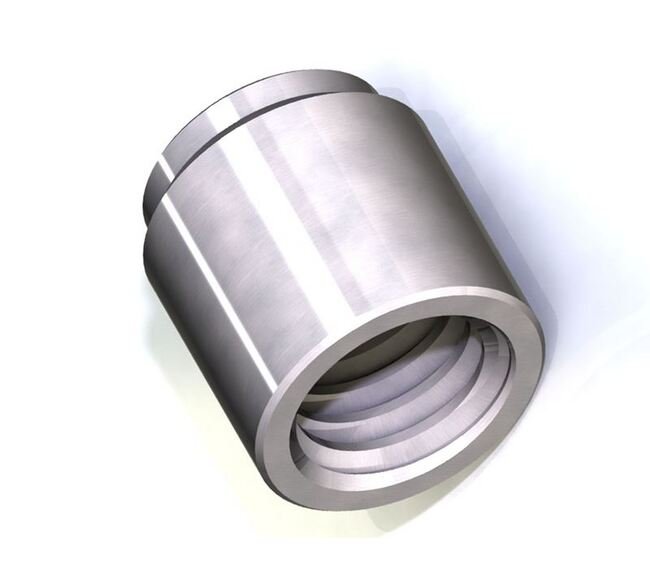

Upgrade your precision flow control systems with our Press-Fit Metal Orifice Inserts. Made of durable 303 stainless steel, these inserts ensure accurate flow rates for liquids and gases in manifolds and custom assemblies. With an orifice diameter accuracy of ±0.0005 in, maximum operating pressure of 4000 psig, and precise press-fit into 0.2475 to 0.2485 in bores, these inserts offer premium performance and reliability. Perfect for applications requiring meticulous flow rate control, these inserts are a must-have for industrial and institutional setups.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.2495 in
Dimensions Minimum Outside Diameter
0.2490 in
Dimensions Orifice Diameter
0.037 in | 0.94 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.2475 to 0.2485 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 8.12 | 5 psig: 18.0 | 10 psig: 25.0 | 15 psig: 30.7 | 20 psig: 36.0 | 25 psig: 41.5 | 30 psig: 47.0 | 40 psig: 58.1 | 50 psig: 69.1 | 60 psig: 80.5 | 70 psig: 91.7 | 80 psig: 103 | 90 psig: 115 | 100 psig: 126
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.83 | 5 psig (34.5 kPag): 8.48 | 10 psig (69.0 kPag): 11.8 | 15 psig (103.4 kPag): 14.5 | 20 psig (137.9 kPag): 17 | 25 psig (172.4 kPag): 19.6 | 30 psig (206.9 kPag): 22.2 | 40 psig (275.8 kPag): 27.4 | 50 psig (344.8 kPag): 32.6 | 60 psig (413.7 kPag): 38 | 70 psig (482.7 kPag): 43.3 | 80 psig (551.6 kPag): 48.7 | 90 psig (620.6 kPag): 54.2 | 100 psig (689.5 kPag): 59.6
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 15.2 | 20 In. Hg.: 15.2 | 30 In. Hg.: 15.2
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 7.17 | 20 In. Hg. (508 Mm. Hg.): 7.17 | 30 In. Hg. (762 Mm. Hg.): 7.17
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 11.4 | 10 In. Hg.: 14.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 5.4 | 10 In. Hg. (254 Mm. Hg.): 6.78
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.031 | 2 psig: 0.044 | 3 psig: 0.054 | 4 psig: 0.062 | 5 psig: 0.069 | 6 psig: 0.076 | 7 psig: 0.082 | 8 psig: 0.088 | 9 psig: 0.093 | 10 psig: 0.098 | 15 psig: 0.120 | 20 psig: 0.139 | 30 psig: 0.170 | 40 psig: 0.196 | 50 psig: 0.219 | 60 psig: 0.240 | 70 psig: 0.259 | 80 psig: 0.277 | 90 psig: 0.294 | 100 psig: 0.310
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.117 | 2 psig (13.8 kPag): 0.166 | 3 psig (20.7 kPag): 0.203 | 4 psig (27.6 kPag): 0.235 | 5 psig (34.5 kPag): 0.262 | 6 psig (41.4 kPag): 0.287 | 7 psig (48.3 kPag): 0.310 | 8 psig (55.2 kPag): 0.332 | 9 psig (62.1 kPag): 0.352 | 10 psig (69 kPag): 0.371 | 15 psig (103.4 kPag): 0.454 | 20 psig (137.9 kPag): 0.525 | 30 psig (206.9 kPag): 0.643 | 40 psig (275.8 kPag): 0.742 | 50 psig (344.8 kPag): 0.83 | 60 psig (413.7 kPag): 0.909 | 70 psig (482.7 kPag): 0.982 | 80 psig (551.6 kPag): 1.050 | 90 psig (620.6 kPag): 1.113 | 100 psig (689.5 kPag): 1.173
Specifications Connection A
.249" Press-Fit Insert
Specifications Cv
0.031
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
37
Specifications Screened
None
