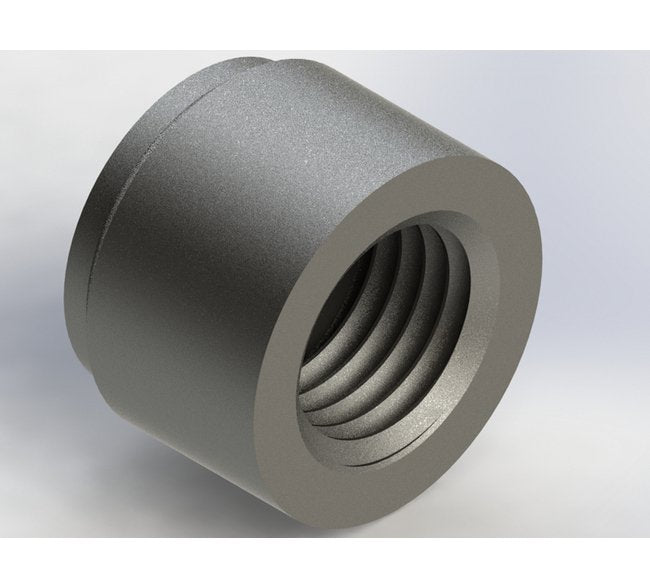

Press-Fit Metal Orifice Inserts, 0.380" OD
Press-Fit Metal Orifice Inserts, 0.380" OD
SKU:PRE-b26b4c
Achieve precise flow control with our Press-Fit Metal Orifice Inserts in 0.380" OD. Perfect for industrial fittings & assemblies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Metal Orifice Inserts, 0.380" OD
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Metal Orifice Inserts, 0.380" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision and control flow with our Press-Fit Metal Orifice Inserts. Constructed of 303 SS, these inserts offer precise orifice diameter accuracy of ±0.0005" and can handle a maximum operating pressure of 4000 psig. Ideal for regulating liquids or gases in various fittings, manifolds, and custom assemblies, these inserts ensure efficient flow rate control, meeting the highest quality standards for industrial applications.
Product Specifications
Application 0

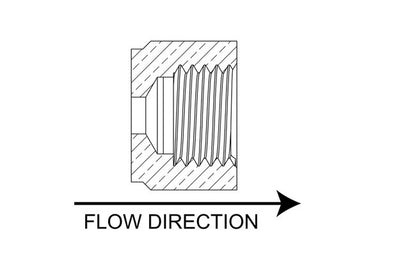

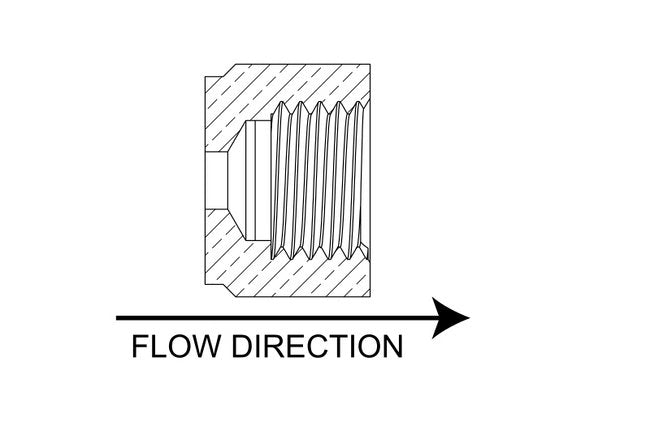

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

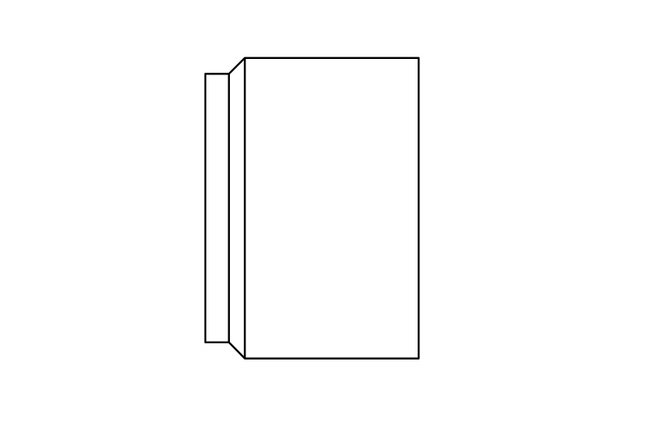

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.0059 in | 0.15 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.182 | 5 psig: 0.45 | 10 psig: 0.65 | 15 psig: 0.82 | 20 psig: 0.97 | 25 psig: 1.12 | 30 psig: 1.26 | 40 psig: 1.56 | 50 psig: 1.86 | 60 psig: 2.16 | 70 psig: 2.46 | 80 psig: 2.75 | 90 psig: 3.05 | 100 psig: 3.35
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.086 | 5 psig (34.5 kPag): 0.21 | 10 psig (69.0 kPag): 0.31 | 15 psig (103.4 kPag): 0.39 | 20 psig (137.9 kPag): 0.46 | 25 psig (172.4 kPag): 0.53 | 30 psig (206.9 kPag): 0.60 | 40 psig (275.8 kPag): 0.74 | 50 psig (344.8 kPag): 0.88 | 60 psig (413.7 kPag): 1.02 | 70 psig (482.7 kPag): 1.16 | 80 psig (551.6 kPag): 1.30 | 90 psig (620.6 kPag): 1.44 | 100 psig (689.5 kPag): 1.58
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.392 | 20 In. Hg.: 0.392 | 30 In. Hg.: 0.392
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.185 | 20 In. Hg. (508 Mm. Hg.): 0.185 | 30 In. Hg. (762 Mm. Hg.): 0.185
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.273 | 10 In. Hg.: 0.356
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.129 | 10 In. Hg. (254 Mm. Hg.): 0.168
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0009 | 2 psig: 0.0012 | 3 psig: 0.0015 | 4 psig: 0.0017 | 5 psig: 0.0019 | 6 psig: 0.0021 | 7 psig: 0.0023 | 8 psig: 0.0024 | 9 psig: 0.0026 | 10 psig: 0.0027 | 15 psig: 0.0033 | 20 psig: 0.0038 | 30 psig: 0.0047 | 40 psig: 0.0054 | 50 psig: 0.0061 | 60 psig: 0.0067 | 70 psig: 0.0072 | 80 psig: 0.0077 | 90 psig: 0.0082 | 100 psig: 0.0086
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0033 | 2 psig (13.8 kPag): 0.0046 | 3 psig (20.7 kPag): 0.0056 | 4 psig (27.6 kPag): 0.0065 | 5 psig (34.5 kPag): 0.0073 | 6 psig (41.4 kPag): 0.0073 | 7 psig (48.3 kPag): 0.0086 | 8 psig (55.2 kPag): 0.0092 | 9 psig (62.1 kPag): 0.0098 | 10 psig (69 kPag): 0.0103 | 15 psig (103.4 kPag): 0.0126 | 20 psig (137.9 kPag): 0.0146 | 30 psig (206.9 kPag): 0.0178 | 40 psig (275.8 kPag): 0.0206 | 50 psig (344.8 kPag): 0.0230 | 60 psig (413.7 kPag): 0.0252 | 70 psig (482.7 kPag): 0.0272 | 80 psig (551.6 kPag): 0.0291 | 90 psig (620.6 kPag): 0.0309 | 100 psig (689.5 kPag): 0.0326
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.00086
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
6
Specifications Screened
None
