Press-Fit Metal Orifices Insert, 0.258" OD
Press-Fit Metal Orifices Insert, 0.258" OD
SKU:PRE-3a8254
Enhance fluid control with our Precision Metal Orifices - Press-Fit Inserts. Achieve precise flow rate control with durable 303 SS construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Metal Orifices Insert, 0.258" OD
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Metal Orifices Insert, 0.258" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

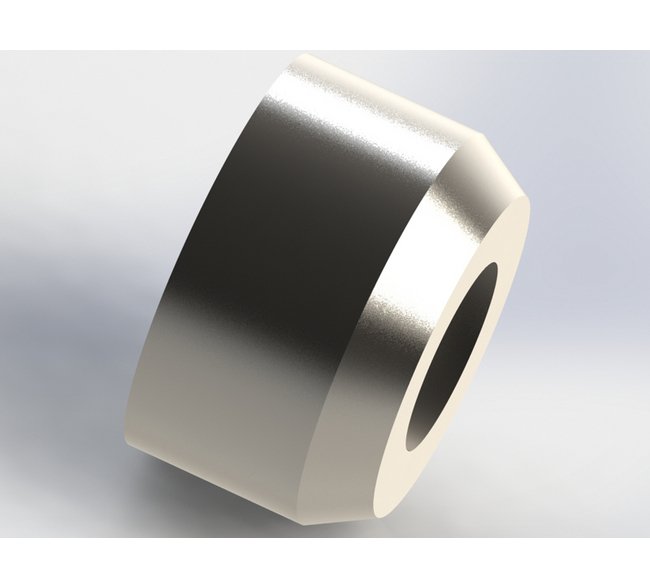

Upgrade your fluid control systems with our Precision Metal Orifices - Press-Fit Inserts. Expertly designed for precise press-fit installations, these inserts ensure accurate flow rate control for liquids and gases. Made of durable 303 SS, they offer superior performance with a CV of 0.0043 and a max operating pressure of 4000 psig. Ideal for fittings, manifolds, and custom assemblies, these orifices guarantee precision and reliability in fluid management.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.0142 in | 0.36 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.11 | 5 psig: 2.56 | 10 psig: 3.56 | 15 psig: 4.45 | 20 psig: 5.28 | 25 psig: 6.06 | 30 psig: 6.80 | 40 psig: 8.33 | 50 psig: 9.83 | 60 psig: 11.3 | 70 psig: 12.8 | 80 psig: 14.3 | 90 psig: 15.9 | 100 psig: 17.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.52 | 5 psig (34.5 kPag): 1.21 | 10 psig (69.0 kPag): 1.68 | 15 psig (103.4 kPag): 2.10 | 20 psig (137.9 kPag): 2.49 | 25 psig (172.4 kPag): 2.86 | 30 psig (206.9 kPag): 3.21 | 40 psig (275.8 kPag): 3.93 | 50 psig (344.8 kPag): 4.64 | 60 psig (413.7 kPag): 5.34 | 70 psig (482.7 kPag): 6.05 | 80 psig (551.6 kPag): 6.77 | 90 psig (620.6 kPag): 7.49 | 100 psig (689.5 kPag): 8.21
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.26 | 20 In. Hg.: 2.26 | 30 In. Hg.: 2.26
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.07 | 20 In. Hg. (508 Mm. Hg.): 1.07 | 30 In. Hg. (762 Mm. Hg.): 1.07
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.64 | 10 In. Hg.: 2.06
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.773 | 10 In. Hg. (254 Mm. Hg.): 0.972
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0043 | 2 psig: 0.0061 | 3 psig: 0.0074 | 4 psig: 0.0086 | 5 psig: 0.0096 | 6 psig: 0.0105 | 7 psig: 0.0114 | 8 psig: 0.0122 | 9 psig: 0.0129 | 10 psig: 0.0136 | 15 psig: 0.0167 | 20 psig: 0.0192 | 30 psig: 0.0236 | 40 psig: 0.0272 | 50 psig: 0.0304 | 60 psig: 0.0333 | 70 psig: 0.0360 | 80 psig: 0.0385 | 90 psig: 0.0408 | 100 psig: 0.0430
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0163 | 2 psig (13.8 kPag): 0.0230 | 3 psig (20.7 kPag): 0.0282 | 4 psig (27.6 kPag): 0.0326 | 5 psig (34.5 kPag): 0.0364 | 6 psig (41.4 kPag): 0.0364 | 7 psig (48.3 kPag): 0.0431 | 8 psig (55.2 kPag): 0.0460 | 9 psig (62.1 kPag): 0.0488 | 10 psig (69 kPag): 0.0515 | 15 psig (103.4 kPag): 0.0630 | 20 psig (137.9 kPag): 0.0728 | 30 psig (206.9 kPag): 0.0892 | 40 psig (275.8 kPag): 0.1029 | 50 psig (344.8 kPag): 0.1151 | 60 psig (413.7 kPag): 0.1261 | 70 psig (482.7 kPag): 0.1362 | 80 psig (551.6 kPag): 0.1456 | 90 psig (620.6 kPag): 0.1544 | 100 psig (689.5 kPag): 0.1628
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.0043
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
14
Specifications Screened
None
