The Press-Fit Metal Orifices Inserts are precision-engineered to seamlessly integrate into fittings, manifolds, and custom components for precise flow control of liquids or gases. Made of high-quality 303 SS, these inserts offer an accurate orifice diameter of 0.063 inches with a press-fit range from 0.3785 to 0.3795 inches, ensuring a secure and leak-free fit. With a maximum operating pressure of 4000 psig and a CV rating of 0.088, these inserts deliver reliable performance for various applications requiring controlled fluid flow. Ideal for both consumer and institutional buyers seeking top-notch precision metal orifices.
Product Specifications
Application 0

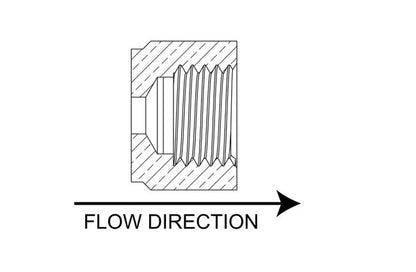

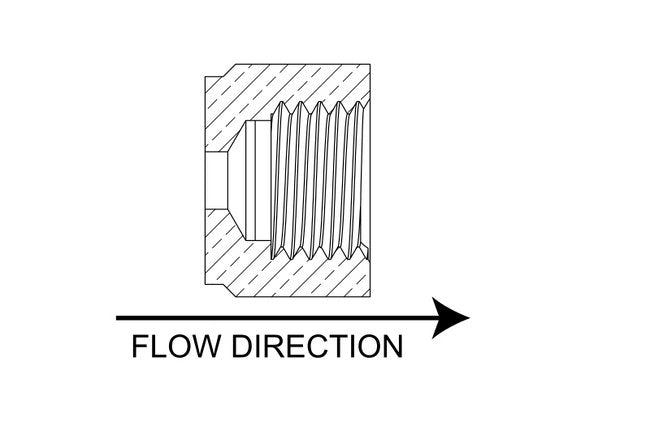

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

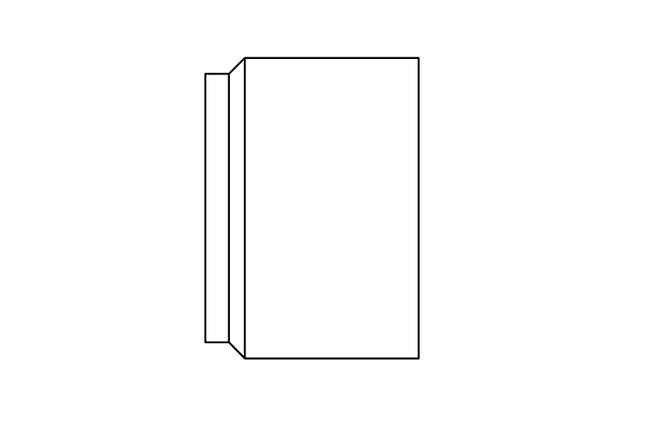

Dimensions Maximum Outside Diameter
0.3805 in
Dimensions Minimum Outside Diameter
0.3800 in
Dimensions Orifice Diameter
0.063 in | 1.6 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.3785 to 0.3795 in
Dimensions Thread Size
10-32
Dimensions Total Length
0.270 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 25.9 | 5 psig: 55.3 | 10 psig: 74.6 | 15 psig: 90.3 | 20 psig: 106 | 25 psig: 122 | 30 psig: 138 | 40 psig: 170 | 50 psig: 202 | 60 psig: 233 | 70 psig: 267 | 80 psig: 298 | 90 psig: 331 | 100 psig: 362
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 12.2 | 5 psig (34.5 kPag): 26.1 | 10 psig (69.0 kPag): 35.2 | 15 psig (103.4 kPag): 42.6 | 20 psig (137.9 kPag): 50.1 | 25 psig (172.4 kPag): 57.7 | 30 psig (206.9 kPag): 65.2 | 40 psig (275.8 kPag): 80.3 | 50 psig (344.8 kPag): 95.4 | 60 psig (413.7 kPag): 110 | 70 psig (482.7 kPag): 126 | 80 psig (551.6 kPag): 141 | 90 psig (620.6 kPag): 156 | 100 psig (689.5 kPag): 171
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 46.8 | 20 In. Hg.: 46.8 | 30 In. Hg.: 46.8
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 22.1 | 20 In. Hg. (508 Mm. Hg.): 22.1 | 30 In. Hg. (762 Mm. Hg.): 22.1
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 36.2 | 10 In. Hg.: 44.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 17.1 | 10 In. Hg. (254 Mm. Hg.): 21.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.088 | 2 psig: 0.124 | 3 psig: 0.152 | 4 psig: 0.176 | 5 psig: 0.197 | 6 psig: 0.216 | 7 psig: 0.233 | 8 psig: 0.249 | 9 psig: 0.264 | 10 psig: 0.278 | 15 psig: 0.341 | 20 psig: 0.394 | 30 psig: 0.482 | 40 psig: 0.557 | 50 psig: 0.622 | 60 psig: 0.682 | 70 psig: 0.736 | 80 psig: 0.787 | 90 psig: 0.835 | 100 psig: 0.880
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.333 | 2 psig (13.8 kPag): 0.471 | 3 psig (20.7 kPag): 0.577 | 4 psig (27.6 kPag): 0.666 | 5 psig (34.5 kPag): 0.745 | 6 psig (41.4 kPag): 0.816 | 7 psig (48.3 kPag): 0.881 | 8 psig (55.2 kPag): 0.942 | 9 psig (62.1 kPag): 0.999 | 10 psig (69 kPag): 1.053 | 15 psig (103.4 kPag): 1.290 | 20 psig (137.9 kPag): 1.490 | 30 psig (206.9 kPag): 1.825 | 40 psig (275.8 kPag): 2.107 | 50 psig (344.8 kPag): 2.355 | 60 psig (413.7 kPag): 2.580 | 70 psig (482.7 kPag): 2.787 | 80 psig (551.6 kPag): 2.979 | 90 psig (620.6 kPag): 3.16 | 100 psig (689.5 kPag): 3.331
Specifications Connection A
.380" Press-Fit Insert
Specifications Cv
0.088
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
63
Specifications Screened
None
