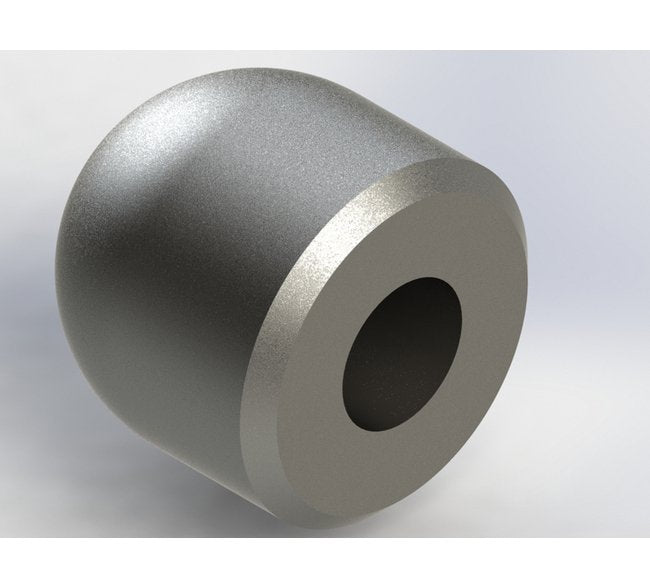

Press-Fit Metal Orifices - Precision Inserts, 0.061" OD
Press-Fit Metal Orifices - Precision Inserts, 0.061" OD
SKU:PRE-b4f199
Achieve precise fluid control with our Press-Fit Metal Orifices - Precision Inserts, designed for accuracy and durability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Press-Fit Metal Orifices - Precision Inserts, 0.061" OD
$25.99
Quantity: 1
Claim Your Seller Account
Press-Fit Metal Orifices - Precision Inserts, 0.061" OD
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision fluid control with our Press-Fit Metal Orifices - Precision Inserts. Made of durable 303 SS, these inserts ensure accurate flow rate control in fittings, manifolds, and custom parts. With an Orifice Diameter Accuracy of ±0.0005 in, Press Fit into Bore range of 0.0605-0.0610 in, and Maximum Operating Pressure of 4000 psig, these inserts offer reliable performance in various fluid systems. Ideal for institutional and government applications requiring precise flow control.
Product Specifications
Application 0

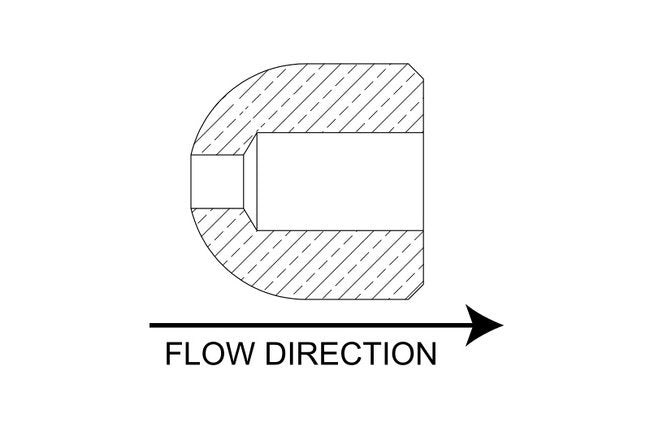

The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.

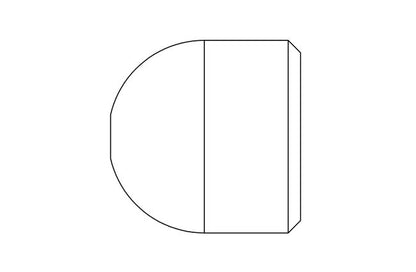

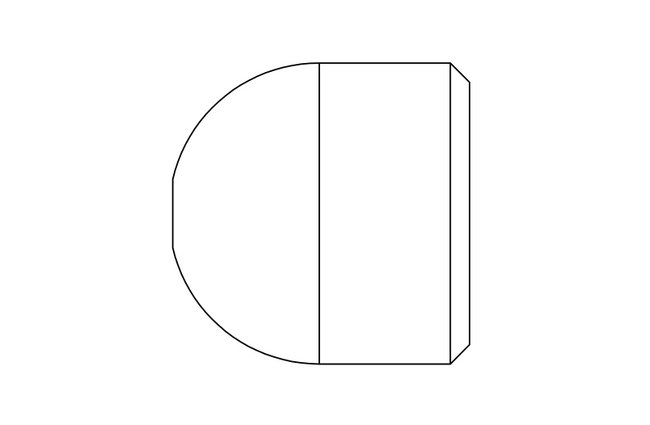

Dimensions Maximum Outside Diameter
0.0625 in
Dimensions Minimum Outside Diameter
0.0615 in
Dimensions Orifice Diameter
0.0122 in | 0.31 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.0605 to 0.0610 in
Dimensions Total Length
0.062 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.843 | 5 psig: 1.94 | 10 psig: 2.73 | 15 psig: 3.43 | 20 psig: 4.07 | 25 psig: 4.66 | 30 psig: 5.23 | 40 psig: 6.44 | 50 psig: 7.59 | 60 psig: 8.75 | 70 psig: 9.92 | 80 psig: 11.1 | 90 psig: 12.2 | 100 psig: 13.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.398 | 5 psig (34.5 kPag): 0.92 | 10 psig (69.0 kPag): 1.29 | 15 psig (103.4 kPag): 1.62 | 20 psig (137.9 kPag): 1.92 | 25 psig (172.4 kPag): 2.20 | 30 psig (206.9 kPag): 2.47 | 40 psig (275.8 kPag): 3.04 | 50 psig (344.8 kPag): 3.58 | 60 psig (413.7 kPag): 4.13 | 70 psig (482.7 kPag): 4.68 | 80 psig (551.6 kPag): 5.23 | 90 psig (620.6 kPag): 5.78 | 100 psig (689.5 kPag): 6.33
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 1.68 | 20 In. Hg.: 1.68 | 30 In. Hg.: 1.68
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.792 | 20 In. Hg. (508 Mm. Hg.): 0.792 | 30 In. Hg. (762 Mm. Hg.): 0.792
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.23 | 10 In. Hg.: 1.55
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.582 | 10 In. Hg. (254 Mm. Hg.): 0.730
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0034 | 2 psig: 0.0048 | 3 psig: 0.0059 | 4 psig: 0.0068 | 5 psig: 0.0076 | 6 psig: 0.0083 | 7 psig: 0.0090 | 8 psig: 0.0096 | 9 psig: 0.0102 | 10 psig: 0.0108 | 15 psig: 0.0132 | 20 psig: 0.0152 | 30 psig: 0.0186 | 40 psig: 0.0215 | 50 psig: 0.0240 | 60 psig: 0.0263 | 70 psig: 0.0284 | 80 psig: 0.0304 | 90 psig: 0.0323 | 100 psig: 0.0340
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0129 | 2 psig (13.8 kPag): 0.0182 | 3 psig (20.7 kPag): 0.0223 | 4 psig (27.6 kPag): 0.0257 | 5 psig (34.5 kPag): 0.0288 | 6 psig (41.4 kPag): 0.0288 | 7 psig (48.3 kPag): 0.0341 | 8 psig (55.2 kPag): 0.0364 | 9 psig (62.1 kPag): 0.0386 | 10 psig (69 kPag): 0.0407 | 15 psig (103.4 kPag): 0.0498 | 20 psig (137.9 kPag): 0.0576 | 30 psig (206.9 kPag): 0.0705 | 40 psig (275.8 kPag): 0.0814 | 50 psig (344.8 kPag): 0.0910 | 60 psig (413.7 kPag): 0.0997 | 70 psig (482.7 kPag): 0.1077 | 80 psig (551.6 kPag): 0.1151 | 90 psig (620.6 kPag): 0.1221 | 100 psig (689.5 kPag): 0.1287
Specifications Connection A
.0615" Press-Fit Insert
Specifications Cv
0.0034
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
12
Specifications Screened
None
