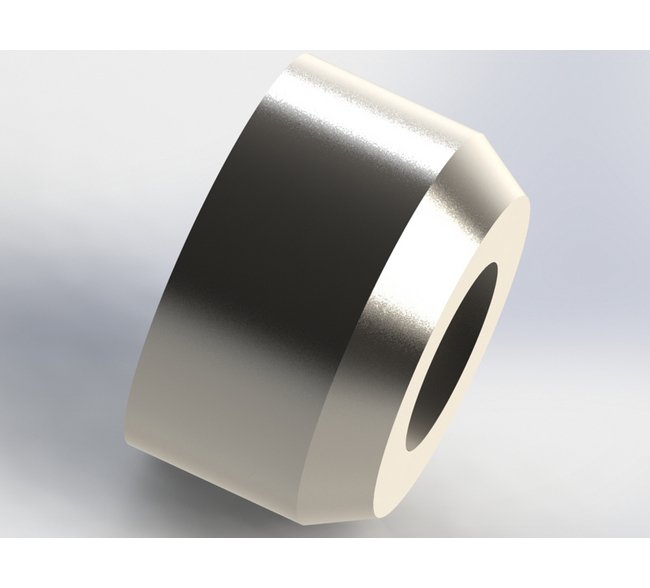

Press-Fit Precision Metal Orifice Inserts, 0.258 Inch OD
Press-Fit Precision Metal Orifice Inserts, 0.258 Inch OD
SKU:PRE-d2a104
Optimize flow control precision with our high-quality Press-Fit Metal Orifice Inserts, designed for accurate fluid flow in high-pressure applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Press-Fit Precision Metal Orifice Inserts, 0.258 Inch OD
$24.99
Quantity: 1
Claim Your Seller Account
Press-Fit Precision Metal Orifice Inserts, 0.258 Inch OD
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid flow control in fittings, manifolds, and custom parts with our Precision Metal Orifice Inserts. These press-fit inserts, made of 303 SS material, offer tight tolerances with an orifice diameter accuracy of ±0.0005 inches. Ideal for high-pressure applications up to 4000 psig, ensuring precise flow rates for liquids and gases. Compatible with various fittings, these inserts guarantee reliable flow control and efficiency in custom assemblies. Whether for industrial or institutional use, these inserts meet rigorous standards for accuracy and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.0071 in | 0.18 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.269 | 5 psig: 0.64 | 10 psig: 0.91 | 15 psig: 1.14 | 20 psig: 1.38 | 25 psig: 1.59 | 30 psig: 1.80 | 40 psig: 2.22 | 50 psig: 2.67 | 60 psig: 3.09 | 70 psig: 3.54 | 80 psig: 3.96 | 90 psig: 4.41 | 100 psig: 4.83
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.127 | 5 psig (34.5 kPag): 0.30 | 10 psig (69.0 kPag): 0.43 | 15 psig (103.4 kPag): 0.54 | 20 psig (137.9 kPag): 0.65 | 25 psig (172.4 kPag): 0.75 | 30 psig (206.9 kPag): 0.85 | 40 psig (275.8 kPag): 1.05 | 50 psig (344.8 kPag): 1.26 | 60 psig (413.7 kPag): 1.46 | 70 psig (482.7 kPag): 1.67 | 80 psig (551.6 kPag): 1.87 | 90 psig (620.6 kPag): 2.08 | 100 psig (689.5 kPag): 2.28
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.568 | 20 In. Hg.: 0.568 | 30 In. Hg.: 0.568
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.268 | 20 In. Hg. (508 Mm. Hg.): 0.268 | 30 In. Hg. (762 Mm. Hg.): 0.268
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.405 | 10 In. Hg.: 0.521
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.191 | 10 In. Hg. (254 Mm. Hg.): 0.246
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0012 | 2 psig: 0.0017 | 3 psig: 0.0021 | 4 psig: 0.0024 | 5 psig: 0.0027 | 6 psig: 0.0029 | 7 psig: 0.0032 | 8 psig: 0.0034 | 9 psig: 0.0036 | 10 psig: 0.0038 | 15 psig: 0.0046 | 20 psig: 0.0054 | 30 psig: 0.0066 | 40 psig: 0.0076 | 50 psig: 0.0085 | 60 psig: 0.0093 | 70 psig: 0.0100 | 80 psig: 0.0107 | 90 psig: 0.0114 | 100 psig: 0.0120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0045 | 2 psig (13.8 kPag): 0.0064 | 3 psig (20.7 kPag): 0.0079 | 4 psig (27.6 kPag): 0.0091 | 5 psig (34.5 kPag): 0.0102 | 6 psig (41.4 kPag): 0.0102 | 7 psig (48.3 kPag): 0.0120 | 8 psig (55.2 kPag): 0.0128 | 9 psig (62.1 kPag): 0.0136 | 10 psig (69 kPag): 0.0144 | 15 psig (103.4 kPag): 0.0176 | 20 psig (137.9 kPag): 0.0203 | 30 psig (206.9 kPag): 0.0249 | 40 psig (275.8 kPag): 0.0287 | 50 psig (344.8 kPag): 0.0321 | 60 psig (413.7 kPag): 0.0352 | 70 psig (482.7 kPag): 0.0380 | 80 psig (551.6 kPag): 0.0406 | 90 psig (620.6 kPag): 0.0431 | 100 psig (689.5 kPag): 0.0454
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.0012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
7
Specifications Screened
None
