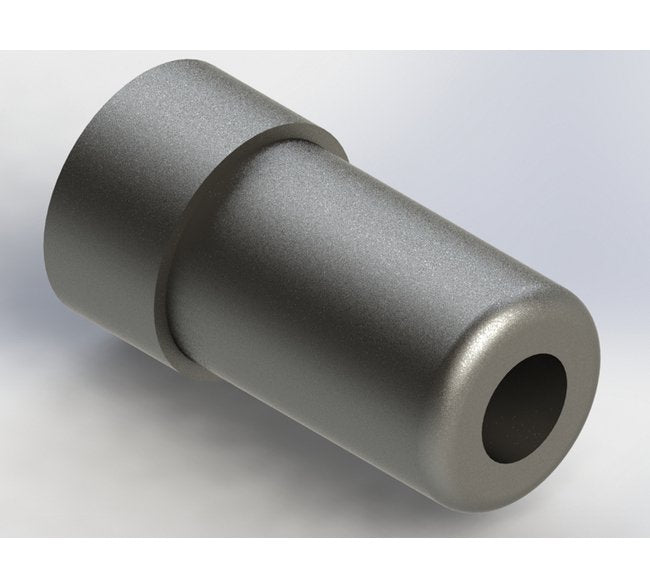

The Press-Fit Precision Metal Orifices 0.128" OD offer precise flow control for liquids and gases in fittings, manifolds, and custom assemblies. Made from high-quality 303 SS, these inserts ensure accuracy with an orifice diameter accuracy of ±0.0005 inches. With a press-fit range of 0.126 to 0.127 inches, these orifices are designed for maximum operating pressure of 4000 psig. Ideal for institutional use, these orifices can be seamlessly integrated into a wide variety of fittings for reliable flow rate management.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.023 in | 0.58 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.99 | 5 psig: 6.87 | 10 psig: 10.1 | 15 psig: 12.6 | 20 psig: 14.7 | 25 psig: 16.8 | 30 psig: 19.0 | 40 psig: 23.3 | 50 psig: 27.5 | 60 psig: 31.8 | 70 psig: 36.0 | 80 psig: 40.3 | 90 psig: 44.5 | 100 psig: 48.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.41 | 5 psig (34.5 kPag): 3.24 | 10 psig (69.0 kPag): 4.75 | 15 psig (103.4 kPag): 5.93 | 20 psig (137.9 kPag): 6.95 | 25 psig (172.4 kPag): 7.95 | 30 psig (206.9 kPag): 8.98 | 40 psig (275.8 kPag): 11.0 | 50 psig (344.8 kPag): 13.0 | 60 psig (413.7 kPag): 15.0 | 70 psig (482.7 kPag): 17.0 | 80 psig (551.6 kPag): 19.0 | 90 psig (620.6 kPag): 21.0 | 100 psig (689.5 kPag): 23.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.04 | 20 In. Hg.: 6.04 | 30 In. Hg.: 6.04
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.85 | 20 In. Hg. (508 Mm. Hg.): 2.85 | 30 In. Hg. (762 Mm. Hg.): 2.85
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.45 | 10 In. Hg.: 5.68
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.10 | 10 In. Hg. (254 Mm. Hg.): 2.68
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.012 | 2 psig: 0.017 | 3 psig: 0.021 | 4 psig: 0.024 | 5 psig: 0.027 | 6 psig: 0.029 | 7 psig: 0.032 | 8 psig: 0.034 | 9 psig: 0.036 | 10 psig: 0.038 | 15 psig: 0.046 | 20 psig: 0.054 | 30 psig: 0.066 | 40 psig: 0.076 | 50 psig: 0.085 | 60 psig: 0.093 | 70 psig: 0.100 | 80 psig: 0.107 | 90 psig: 0.114 | 100 psig: 0.120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.045 | 2 psig (13.8 kPag): 0.064 | 3 psig (20.7 kPag): 0.079 | 4 psig (27.6 kPag): 0.091 | 5 psig (34.5 kPag): 0.102 | 6 psig (41.4 kPag): 0.102 | 7 psig (48.3 kPag): 0.120 | 8 psig (55.2 kPag): 0.128 | 9 psig (62.1 kPag): 0.136 | 10 psig (69 kPag): 0.144 | 15 psig (103.4 kPag): 0.176 | 20 psig (137.9 kPag): 0.203 | 30 psig (206.9 kPag): 0.249 | 40 psig (275.8 kPag): 0.287 | 50 psig (344.8 kPag): 0.321 | 60 psig (413.7 kPag): 0.352 | 70 psig (482.7 kPag): 0.380 | 80 psig (551.6 kPag): 0.406 | 90 psig (620.6 kPag): 0.431 | 100 psig (689.5 kPag): 0.454
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
23
Specifications Screened
None
