Press-Fit Precision Metal Orifices - 0.258" OD Inserts
Press-Fit Precision Metal Orifices - 0.258" OD Inserts
SKU:PRE-6d989d
Experience precision and reliability with our Press-Fit 0.258" OD Metal Orifice Inserts. Control fluid flow with confidence!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Precision Metal Orifices - 0.258" OD Inserts
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Precision Metal Orifices - 0.258" OD Inserts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

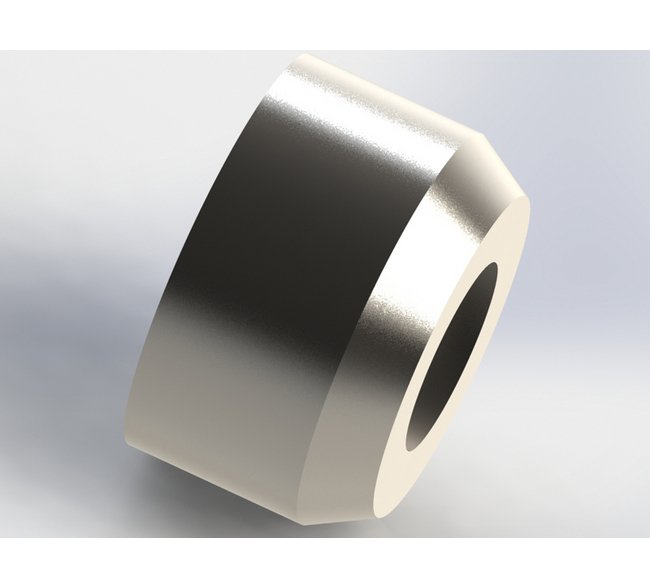

The Press-Fit Precision Metal Orifices - 0.258" OD Inserts are meticulously designed for precise press-fit applications in fittings, manifolds, and custom parts. Crafted from durable 303 SS, these inserts offer exceptional orifice diameter accuracy of ±0.0005", with a wide range of flow control capabilities. Ideal for institutional needs, these inserts ensure efficient fluid control and meet stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.259 in
Dimensions Minimum Outside Diameter
0.258 in
Dimensions Orifice Diameter
0.043 in | 1.09 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.256 to 0.257 in
Dimensions Total Length
0.156 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 11.40 | 5 psig: 25.6 | 10 psig: 35.6 | 15 psig: 43.2 | 20 psig: 50.9 | 25 psig: 58.5 | 30 psig: 66.3 | 40 psig: 82.0 | 50 psig: 97.5 | 60 psig: 113 | 70 psig: 129 | 80 psig: 145 | 90 psig: 161 | 100 psig: 177
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 5.36 | 5 psig (34.5 kPag): 12.1 | 10 psig (69.0 kPag): 16.8 | 15 psig (103.4 kPag): 20.4 | 20 psig (137.9 kPag): 24 | 25 psig (172.4 kPag): 27.6 | 30 psig (206.9 kPag): 31.3 | 40 psig (275.8 kPag): 38.7 | 50 psig (344.8 kPag): 46 | 60 psig (413.7 kPag): 53.5 | 70 psig (482.7 kPag): 61 | 80 psig (551.6 kPag): 68.5 | 90 psig (620.6 kPag): 76 | 100 psig (689.5 kPag): 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 21.1 | 20 In. Hg.: 21.1 | 30 In. Hg.: 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 10 | 20 In. Hg. (508 Mm. Hg.): 10 | 30 In. Hg. (762 Mm. Hg.): 10
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 16.3 | 10 In. Hg.: 20.3
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.67 | 10 In. Hg. (254 Mm. Hg.): 9.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.041 | 2 psig: 0.058 | 3 psig: 0.071 | 4 psig: 0.082 | 5 psig: 0.092 | 6 psig: 0.100 | 7 psig: 0.108 | 8 psig: 0.116 | 9 psig: 0.123 | 10 psig: 0.130 | 15 psig: 0.159 | 20 psig: 0.183 | 30 psig: 0.225 | 40 psig: 0.259 | 50 psig: 0.290 | 60 psig: 0.318 | 70 psig: 0.343 | 80 psig: 0.367 | 90 psig: 0.389 | 100 psig: 0.410
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.155 | 2 psig (13.8 kPag): 0.219 | 3 psig (20.7 kPag): 0.269 | 4 psig (27.6 kPag): 0.310 | 5 psig (34.5 kPag): 0.347 | 6 psig (41.4 kPag): 0.38 | 7 psig (48.3 kPag): 0.411 | 8 psig (55.2 kPag): 0.439 | 9 psig (62.1 kPag): 0.466 | 10 psig (69 kPag): 0.491 | 15 psig (103.4 kPag): 0.601 | 20 psig (137.9 kPag): 0.694 | 30 psig (206.9 kPag): 0.850 | 40 psig (275.8 kPag): 0.982 | 50 psig (344.8 kPag): 1.097 | 60 psig (413.7 kPag): 1.202 | 70 psig (482.7 kPag): 1.299 | 80 psig (551.6 kPag): 1.388 | 90 psig (620.6 kPag): 1.472 | 100 psig (689.5 kPag): 1.552
Specifications Connection A
.258" Press-Fit Insert
Specifications Cv
0.041
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
43
Specifications Screened
None
