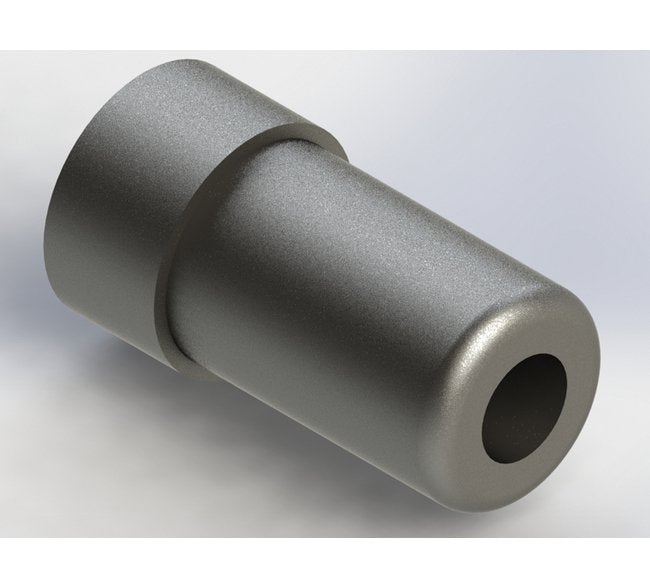

Press-Fit Precision Metal Orifices Inserts - 0.128" OD
Press-Fit Precision Metal Orifices Inserts - 0.128" OD
SKU:PRE-2cacb9
High-precision metal orifice inserts for accurate flow control in custom parts and fittings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Press-Fit Precision Metal Orifices Inserts - 0.128" OD
$29.99
Quantity: 1
Claim Your Seller Account
Press-Fit Precision Metal Orifices Inserts - 0.128" OD
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Press-Fit Precision Metal Orifices Inserts are meticulously designed for accurate press-fitting into machined openings in fittings, manifolds, and custom parts. Crafted from high-grade 303 SS material, these inserts ensure precise flow control of liquids or gases with an orifice diameter accuracy of ±0.0005 inches. With a maximum operating pressure of 4000 psig and precise dimensions, these inserts provide reliable performance for applications requiring exact flow rate management. Ideal for use in diverse fittings and custom assemblies, these orifices offer unmatched reliability and precision.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.129 in
Dimensions Minimum Outside Diameter
0.128 in
Dimensions Orifice Diameter
0.0071 in | 0.18 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.126 to 0.127 in
Dimensions Shank Length
0.196 in
Dimensions Total Length
0.276 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.269 | 5 psig: 0.64 | 10 psig: 0.91 | 15 psig: 1.14 | 20 psig: 1.38 | 25 psig: 1.59 | 30 psig: 1.80 | 40 psig: 2.22 | 50 psig: 2.67 | 60 psig: 3.09 | 70 psig: 3.54 | 80 psig: 3.96 | 90 psig: 4.41 | 100 psig: 4.83
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.127 | 5 psig (34.5 kPag): 0.30 | 10 psig (69.0 kPag): 0.43 | 15 psig (103.4 kPag): 0.54 | 20 psig (137.9 kPag): 0.65 | 25 psig (172.4 kPag): 0.75 | 30 psig (206.9 kPag): 0.85 | 40 psig (275.8 kPag): 1.05 | 50 psig (344.8 kPag): 1.26 | 60 psig (413.7 kPag): 1.46 | 70 psig (482.7 kPag): 1.67 | 80 psig (551.6 kPag): 1.87 | 90 psig (620.6 kPag): 2.08 | 100 psig (689.5 kPag): 2.28
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.568 | 20 In. Hg.: 0.568 | 30 In. Hg.: 0.568
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.268 | 20 In. Hg. (508 Mm. Hg.): 0.268 | 30 In. Hg. (762 Mm. Hg.): 0.268
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.405 | 10 In. Hg.: 0.521
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.191 | 10 In. Hg. (254 Mm. Hg.): 0.246
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0012 | 2 psig: 0.0017 | 3 psig: 0.0021 | 4 psig: 0.0024 | 5 psig: 0.0027 | 6 psig: 0.0029 | 7 psig: 0.0032 | 8 psig: 0.0034 | 9 psig: 0.0036 | 10 psig: 0.0038 | 15 psig: 0.0046 | 20 psig: 0.0054 | 30 psig: 0.0066 | 40 psig: 0.0076 | 50 psig: 0.0085 | 60 psig: 0.0093 | 70 psig: 0.0100 | 80 psig: 0.0107 | 90 psig: 0.0114 | 100 psig: 0.0120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0045 | 2 psig (13.8 kPag): 0.0064 | 3 psig (20.7 kPag): 0.0079 | 4 psig (27.6 kPag): 0.0091 | 5 psig (34.5 kPag): 0.0102 | 6 psig (41.4 kPag): 0.0102 | 7 psig (48.3 kPag): 0.0120 | 8 psig (55.2 kPag): 0.0128 | 9 psig (62.1 kPag): 0.0136 | 10 psig (69 kPag): 0.0144 | 15 psig (103.4 kPag): 0.0176 | 20 psig (137.9 kPag): 0.0203 | 30 psig (206.9 kPag): 0.0249 | 40 psig (275.8 kPag): 0.0287 | 50 psig (344.8 kPag): 0.0321 | 60 psig (413.7 kPag): 0.0352 | 70 psig (482.7 kPag): 0.0380 | 80 psig (551.6 kPag): 0.0406 | 90 psig (620.6 kPag): 0.0431 | 100 psig (689.5 kPag): 0.0454
Specifications Connection A
.128" Press-Fit Insert
Specifications Cv
0.0012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
7
Specifications Screened
None
